Belden 5504F1 0101000 Security & Sound, #22-6c, TC, Shielded, CM, Water-Blocked - Black, 1,000 ft Reel

$469.99
SKU:
5504F1 0101000
Shipping:
Calculated at Checkout
Color:
Black
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
5504F1
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 5504F1 0101000 Security & Sound, #22-6c, TC, Shielded, CM, Water-Blocked

Security & Sound Cable, Rated-CM, 6-22 AWG stranded tinned copper conductors with PVC insulation, waterblocking tape, Beldfoil® shield and PVC jacket with ripcord

Ordering Details

  • Manufacturer Part Number: 5504F1 0101000
  • Color: Black
  • Length: 1,000 ft
  • Put-Up: Reel

Supplied as one 1,000 ft Reel.

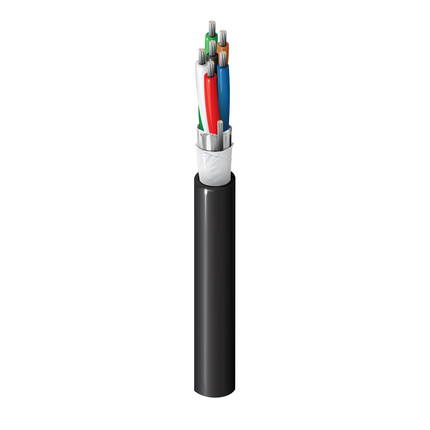

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy & Wet Location, Below-Grade Duct

Construction Details

  • Element: Conductor(s); No. of Elements: 6; Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
  • Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.011 in (0.28 mm); Nom. Insulation Diameter: 0.051 in (1.3 mm); Color Code: Black, Red, White, Green, Brown, Blue
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
  • Separator: Waterblocking Tape; Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.025 in (0.64 mm); Nom. Diameter: 0.238 in; Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.238 in

Electrical Characteristics

  • Nom. Conductor DCR: 17.9 Ohm/1000ft; Max. Current: 2 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 16.7 Ohm/1000ft (54.8 Ohm/km)
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 105°C; Operating: -30°C To +105°C
  • Stationary Min.: 2.38 in (60.5 mm); Installation Min.: 2.38 in
  • Max. Pull Tension: 60.1 lbs (27.3 kg)
  • Bulk Cable Weight: 30 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Outdoor - Water Exposure, Indoor, Outdoor
  • Flammability / Reaction to Fire: UL1685 UL Loading
  • NEC / UL Compliance: Article 800, CM
  • CEC / C(UL) Compliance: CM
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2019-05-03
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.57 Revision Date: 09-07-2025

Resources

Belden 5504F1 Product Information
