Belden 5502UG U4FU1000 Security & Sound, #22-4c, BC, CM - Beige U4F

$202.99
SKU:
5502UG U4FU1000
Shipping:
Calculated at Checkout
Color:
Beige U4F
Manufacturer Status:
Active
Product Family:
5502UG
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 5502UG U4FU1000 Security & Sound, #22-4c, BC, CM

Security & Sound Cable, Rated-CM, 4-22 AWG stranded bare copper conductors with polyolefin insulation, PVC jacket

Ordering Details

  • Manufacturer Part Number: 5502UG U4FU1000
  • Color: Beige U4F
  • UPC/EAN: 612825163459

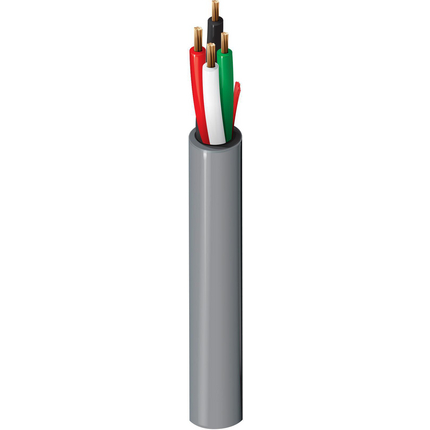

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Security System, Alarm, Intercom/PA, Single Line Telephone

Construction Details

  • Element: Conductor(s); No. of Elements: 4; Size: 22 AWG; Stranding: 7x30; Material: BC - Bare Copper
  • Element: Conductor(s); Material: PP - Polypropylene; Nom. Thickness: 0.007 in (0.18 mm); Nom. Insulation Diameter: 0.042 in (1.1 mm); Color Code: Black, Red, White, Green
  • Material: No Shield
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.131 in; Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.131 in

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 16.2 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 20 pF/ft (66 pF/m); Max. Current: 2.2 Amps per Conductor at 25ºC
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 75°C; Operating: -20°C To +75°C
  • Stationary Min.: 1.31 in (33.3 mm); Installation Min.: 1.31 in
  • Max. Pull Tension: 36.4 lbs (16.5 kg)
  • Bulk Cable Weight: 13 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor
  • Flammability / Reaction to Fire: UL1685 UL Loading
  • NEC / UL Compliance: Article 800, CM
  • CEC / C(UL) Compliance: CM
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.296 Revision Date: 09-07-2025
