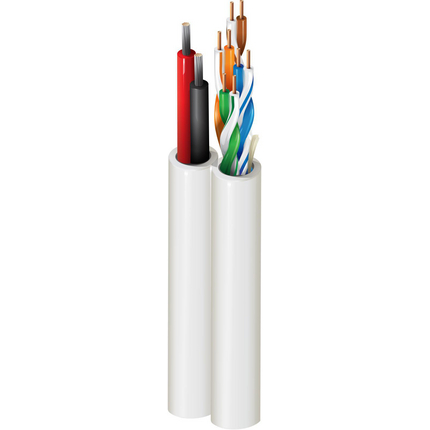

Belden 5288US 0101000 PTZ, Cat5e-4pr, #16-2c, UTP, PVC Jkt, CMR, Siamese - Black

$834.99
SKU:
5288US 0101000
Shipping:
Calculated at Checkout
Color:
Black
Manufacturer Status:
Active
Product Family:
5288US
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 5288US 0101000 PTZ, Cat5e-4pr, #16-2c, UTP, PVC Jkt, CMR, Siamese

PTZ (Control + Power) Cable, Riser-CMR, Cat5e 4-24 AWG solid bare copper data pairs with polyolefin insulation, 2-16 AWG stranded bare copper conductors with PVC insulation, Siamese PVC jacket

Ordering Details

  • Manufacturer Part Number: 5288US 0101000
  • Color: Black
  • UPC/EAN: 612825158905
  • Manufacturer Footnote: C

Product Overview

  • Suitable Applications: Surveillance, CCTV Camera, PTZ (Pan-Tilt-Zoom), UTP-CCTV
  • Patent: This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details

  • Element: Cat 5e Pair; Size: 23 AWG; Stranding: Solid; Material: BC - Bare Copper; No. of Pairs: 4
  • Element: Conductor(s); Size: 16 AWG; Stranding: 19x29; Material: BC - Bare Copper
  • Element: Cat 5e Pair; Material: PO - Polyolefin; Nom. Insulation Diameter: 0.041 in (1.0 mm); Color Code: Blue & White/Blue, Orange & White/Orange, Green & White/Green, Brown & White/Brown
  • Element: Conductor(s); Material: PO - Polyolefin; Nom. Insulation Diameter: 0.101 in (2.57 mm); Color Code: Black & Red
  • Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.190 x 0.408 in
  • Overall Cable Diameter (Nominal): 0.190 x 0.408 in

Electrical Characteristics

  • Max. Conductor DCR: 23.2 Ohm/1000ft (76.1 Ohm/km)
  • Max. Conductor DCR: 14 Ohm/km (4.3 Ohm/1000ft)
  • Max. Delay: 45 ns/ft; Max. Delay Skew: 70 ns/100m; Nom. Velocity of Prop.: 70%
  • Frequency [MHz]: 1; Max. Insertion Loss (Attenuation): 2 dB/100m; Min. PSNEXT [dB]: 62; Min. PSACR [dB]: 60; Min. PSACRF (PSELFEXT) [dB]: 61; Min. RL (Return Loss) [dB]: 20; Max./Min. Fitted Impedance: 100 ± 15%
  • Frequency [MHz]: 4; Max. Insertion Loss (Attenuation): 4.1 dB/100m; Min. PSNEXT [dB]: 53; Min. PSACR [dB]: 49; Min. PSACRF (PSELFEXT) [dB]: 49; Min. RL (Return Loss) [dB]: 23; Max./Min. Fitted Impedance: 100 ± 15%
  • Frequency [MHz]: 8; Max. Insertion Loss (Attenuation): 5.8 dB/100m; Min. PSNEXT [dB]: 48; Min. PSACR [dB]: 43; Min. PSACRF (PSELFEXT) [dB]: 43; Min. RL (Return Loss) [dB]: 24.5; Max./Min. Fitted Impedance: 100 ± 15%
  • Frequency [MHz]: 10; Max. Insertion Loss (Attenuation): 6.5 dB/100m; Min. PSNEXT [dB]: 47; Min. PSACR [dB]: 41; Min. PSACRF (PSELFEXT) [dB]: 41; Min. RL (Return Loss) [dB]: 25; Max./Min. Fitted Impedance: 100 ± 15%
  • Frequency [MHz]: 16; Max. Insertion Loss (Attenuation): 8.2 dB/100m; Min. PSNEXT [dB]: 44; Min. PSACR [dB]: 36; Min. PSACRF (PSELFEXT) [dB]: 37; Min. RL (Return Loss) [dB]: 25; Max./Min. Fitted Impedance: 100 ± 15%
  • Frequency [MHz]: 20; Max. Insertion Loss (Attenuation): 9.3 dB/100m; Min. PSNEXT [dB]: 42; Min. PSACR [dB]: 34; Min. PSACRF (PSELFEXT) [dB]: 35; Min. RL (Return Loss) [dB]: 25; Max./Min. Fitted Impedance: 100 ± 15%
  • Frequency [MHz]: 25; Max. Insertion Loss (Attenuation): 10.4 dB/100m; Min. PSNEXT [dB]: 41; Min. PSACR [dB]: 31; Min. PSACRF (PSELFEXT) [dB]: 33; Min. RL (Return Loss) [dB]: 24.3; Max./Min. Fitted Impedance: 100 ± 15%
  • Frequency [MHz]: 31.25; Max. Insertion Loss (Attenuation): 11.7 dB/100m; Min. PSNEXT [dB]: 39; Min. PSACR [dB]: 28; Min. PSACRF (PSELFEXT) [dB]: 31; Min. RL (Return Loss) [dB]: 23.6; Max./Min. Fitted Impedance: 100 ± 15%
  • Frequency [MHz]: 62.5; Max. Insertion Loss (Attenuation): 17 dB/100m; Min. PSNEXT [dB]: 35; Min. PSACR [dB]: 19; Min. PSACRF (PSELFEXT) [dB]: 24; Min. RL (Return Loss) [dB]: 21.3; Max./Min. Fitted Impedance: 100 ± 15%
  • Frequency [MHz]: 100; Max. Insertion Loss (Attenuation): 22 dB/100m; Min. PSNEXT [dB]: 32; Min. PSACR [dB]: 11; Min. PSACRF (PSELFEXT) [dB]: 21; Min. RL (Return Loss) [dB]: 20.1; Max./Min. Fitted Impedance: 100 ± 15%
  • UL Voltage Rating: 300 V RMS

Mechanical Characteristics

  • UL Temperature: 75°C; Operating: -20°C To +75°C; Installation: 0°C To +75°C
  • Stationary Min.: 4.08 in (104 mm); Installation Min.: 4.08 in (104 mm)
  • Max. Pull Tension: 130 lbs (59 kg)
  • Bulk Cable Weight: 44 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor - Riser, Indoor
  • Sustainability: Product Lens™, Environmental Product Declaration (EPD) Available
  • Flammability / Reaction to Fire: UL1666 Riser, FT4, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CMR
  • CEC / C(UL) Compliance: CMG
  • Data Category: Category 5e
  • ISO/IEC Compliance: ISO/IEC 11801, Category 5e for data pairs
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Other Standard Compliance(s): ISO/IEC 11801, Category 5e
  • Plenum Number: 6288US

Product Notes

  • Notes: Overall jacket sequentially marked.

History

  • Update and Revision: Revision Number: 0.500 Revision Date: 11-06-2026
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 5288US Product Information
