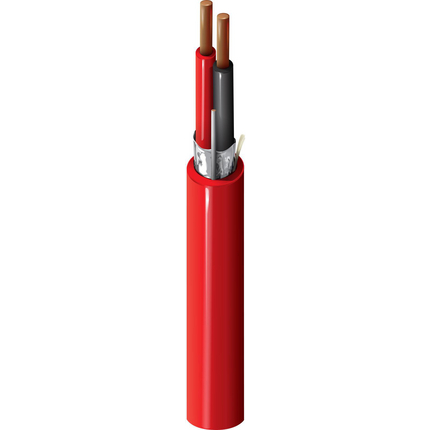

Belden 5220FJ 002500 Fire Alarm, #16-2c BC, Shielded, FPL
Fire Alarm Cable, Rated-FPL, 2-16 AWG solid bare copper conductors with foam polyolefin insulation, overall Beldfoil® shield, PVC jacket with ripcord
Ordering Details
- Manufacturer Part Number: 5220FJ 002500
- Color: Red
- UPC/EAN: 612825158295
Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Fire Alarm, Addressable Systems, Circuits: Audio, Control, Initiating, Notification, Noisy Environment
Construction Details
- Element: Pair(s); No. of Elements: 1; Size: 16 AWG; Stranding: Solid; Material: BC - Bare Copper
- Element: Pair(s); Material: PE - Polyethylene (Foam); Nom. Thickness: 0.015 in (0.38 mm); Nom. Insulation Diameter: 0.082 in (2.1 mm); Color Code: Black & Red
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 20 AWG (7x28) TC
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.033 in (0.84 mm); Nom. Diameter: 0.235 in; Ripcord: Yes
- Overall Cable Diameter (Nominal): 0.235 in
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 3.9 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 31.5 pF/ft (103 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 56.5 pF/ft (185 pF/m); Nom. Inductance: 0.17 µH/ft (0.56 µH/m); Max. Current: 6.3 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 7.1 Ohm/1000ft (23 Ohm/km)
- UL Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 75°C; Operating: -20°C To +75°C
- Stationary Min.: 3.52 in (89.4 mm); Installation Min.: 3.52 in
- Max. Pull Tension: 75 lbs (34 kg)
- Bulk Cable Weight: 33 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor
- Flammability / Reaction to Fire: UL1685 UL Loading
- NEC / UL Compliance: Article 760, FPL
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Plenum Number: 6220FJ
History
- Update and Revision: Revision Number: 0.325 Revision Date: 09-07-2025
