Belden 5120UL 002500 Fire Alarm, #14-2c BC, FPLR - Red

$241.99
SKU:
5120UL 002500
Shipping:
Calculated at Checkout
Color:
Red
Manufacturer Status:
Active
Product Family:
5120UL
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

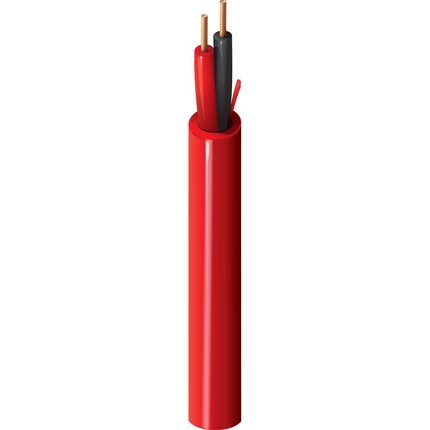

Belden 5120UL 002500 Fire Alarm, #14-2c BC, FPLR

Fire Alarm Cable, Riser-FPLR, 2-14 AWG solid bare copper conductors with polypropylene insulation, PVC jacket with ripcord

Ordering Details

  • Manufacturer Part Number: 5120UL 002500
  • Color: Red
  • UPC/EAN: 612825156970
  • Manufacturer Footnote: C

Product Overview

  • Suitable Applications: Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification

Construction Details

  • Element: Conductor(s); No. of Elements: 2; Size: 14 AWG; Stranding: Solid; Material: BC - Bare Copper
  • Element: Conductor(s); Material: PP - Polypropylene; Nom. Thickness: 0.010 in (0.25 mm); Nom. Insulation Diameter: 0.0845 in (2.15 mm); Color Code: Black, Red
  • Material: PP - Polypropylene; Nom. Thickness: 0.017 in (0.43 mm); Nom. Diameter: 0.205 in (5.21 mm); Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.205 in (5.21 mm)

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 2.43 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 23 pF/ft (75 pF/m); Nom. Inductance: 0.15 µH/ft (0.49 µH/m); Max. Current: 25 Amps per conductor @ 30°C
  • UL Voltage Rating: 300 V (FPLR)

Mechanical Characteristics

  • UL Temperature: 75°C; Operating: -20°C to +75°C
  • Stationary Min.: 1.64 in (41.7 mm); Installation Min.: 1.64 in (41.7 mm)
  • Max. Pull Tension: 99 lbs (45 kg)
  • Bulk Cable Weight: 33 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor - Riser, Indoor
  • Flammability / Reaction to Fire: UL 1666 Riser, IEEE 1202 FT4, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 760, FPLR
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Plenum Number: 6120UL

History

  • Update and Revision: Revision Number: 0.460 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 5120UL Product Information
