Belden 5100UP 010500 Audio Cable, 2 Conductor 14 AWG, BC, Unshielded, CL3 - Black, 500 ft Reel

$425.99
SKU:
5100UP 010500
Shipping:
Calculated at Checkout
Color:
Black
Length:
500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
5100UP
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

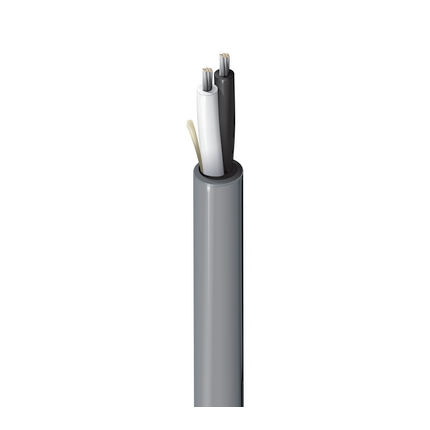

Belden 5100UP 010500 Audio Cable, 2 Conductor 14 AWG, BC, Unshielded, CL3

Audio Cable, Rated-CL3, 2-14 AWG highly flexible stranded bare copper conductors with PVC insulation, PVC jacket with ripcord

Ordering Details

  • Manufacturer Part Number: 5100UP 010500
  • Color: Black
  • Length: 500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825156529

Supplied as one 500 ft Reel.

Product Overview

  • Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Construction Details

  • Element: Conductor(s); No. of Elements: 2; Size: 14 AWG; Stranding: 42x30; Material: BC - Bare Copper
  • Element: Conductor(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.020 in (0.51 mm); Nom. Insulation Diameter: 0.115 in (2.92 mm); Color Code: Black, White
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.018 in (0.46 mm); Nom. Diameter: 0.266 in (6.76 mm); Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.266 in (6.76 mm)

Electrical Characteristics

  • Element: Conductor(s); Nom. Conductor DCR: 2.42 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 29 pF/ft (95 pF/m); Nom. Inductance: 0.17 µH/ft (0.56 µH/m); Max. Current: 25 Amps per conductor @ 30°C
  • UL Voltage Rating: 300 V (CL3)

Mechanical Characteristics

  • UL Temperature: 75°C; Operating: -20°C to +75°C
  • Stationary Min.: 2.7 in (69 mm); Installation Min.: 2.7 in (69 mm)
  • Max. Pull Tension: 106.6 lbs (48.35 kg)
  • Bulk Cable Weight: 39 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
  • Flammability / Reaction to Fire: UL 1685 UL loading , IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 725, CL3
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.493 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
