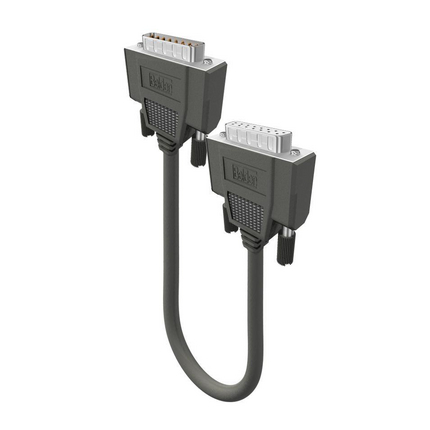

Belden 49747A 060S2 D-Subminiature Assembly, 25 ft, (15) 24 AWG (7x32) TC, S-R PVC/PVC, Foil+TC Braid Shld, CM - Chrome, 25 ft

$1,006.99
SKU:
49747A 060S2
Shipping:
Calculated at Checkout
Color:
Chrome
Length:
25 ft
Product Family:
49747A
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 49747A 060S2 D-Subminiature Assembly, 25 ft, (15) 24 AWG (7x32) TC, S-R PVC/PVC, Foil+TC Braid Shld, CM

Fifteen 24 AWG stranded (7x32) tinned copper conductors, S-R PVC insulation, Beldfoil® plus tinned copper braid shield, PVC jacket, twenty-five foot length.

Ordering Details

  • Manufacturer Part Number: 49747A 060S2
  • Color: Chrome
  • Length: 25 ft
  • UPC/EAN: 612825154310

Physical Characteristics (Overall)

Conductor

  • AWG: 24; Stranding: 7x32; Material: TC - Tinned Copper; Nominal Diameter: 0.024 in; No. of Conductors: 15
  • AWG: Conductor Count:; Material: 15

Insulation

  • Material: SR-PVC - Polyvinyl Chloride (Semi-Rigid); Nominal Wall Thickness: 0.01 in

Outer Shield

  • Type: Tape; Layer: 1; Material: Bi-Laminate (Alum+Poly); Material Trade Name: Beldfoil®; Coverage [%]: 100%
  • Type: Braid; Layer: 2; Material: Tinned Copper (TC); Coverage [%]: 65%

Outer Jacket

  • Material: PVC - Polyvinyl Chloride; Nominal Diameter: 0.3 in; Nominal Wall Thickness: 0.035 in

Electrical Characteristics

Voltage

  • UL Voltage Rating: 300 V RMS (UL AWM Style 2464)

Temperature Range

  • UL Temperature Rating: 80°C (UL AWM Style 2464)

Standards

  • NEC/(UL) Compliance: CM
  • UL AWM Style Compliance: AWM 2464 (300 V 80°C) (cable only)

Applicable Environmental and Other Programs

  • EU Directive Compliance: EU Directive 2003/11/EC (BFR)
  • MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

  • UL voltage rating: 300 V RMS (UL AWM Style 2464)

Plenum/Non-Plenum

  • Plenum (Y/N): No
  • Related Part Numbers:

Variants

  • Item #: 49747A 060S2; Color: Chrome; Length: 25 ft; UPC: 612825154310

Product Notes

  • Notes: Molded handles are 100% shielded to assist in FCC compliance and guard against EMI/RFI. All connectors tin-plated and male connectors have detents for positive ground connection. Wiring is point-to-point with the shield to connector shell.
