Description
Belden 39124 009100 Lead Wire, #24 Str TC, PPO Ins, AWM 11028
Low Temp Plastic Lead Wire, 24AWG (7x32) Tinned Copper, PPO Insulation, AWM 11028 600V 105C VW-1
Ordering Details
- Manufacturer Part Number: 39124 009100
- Color: White
- Length: 100 ft
- Put-Up: Reel
- UPC/EAN: 612825150343
- Manufacturer Footnote: C
Supplied as one 100 ft Reel.

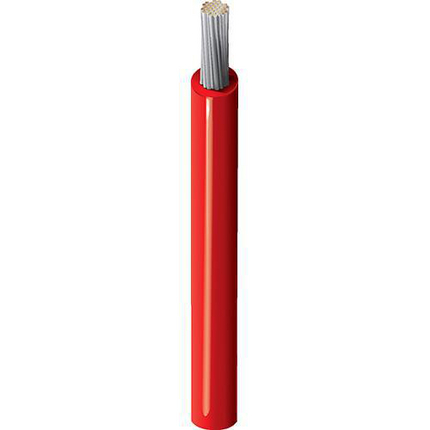

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Electrical panel builders, Electrical/electronic manufacturers, Appliance manufacturers, Furniture, Computer manufacturers, Automotive companies and their sub-suppliers
Construction Details
- Size: 24; Stranding: 7x32; Material: TC - Tinned Copper
- Material: PPO - Polyphenylene Oxide; Nom. Thickness: 0.012 in (0.30 mm); Nom. Insulation Diameter: 0.048 in (1.2 mm)
- Overall Cable Diameter (Nominal): 0.028 in (0.71 mm)
Electrical Characteristics
- Nom. Conductor DCR: 24.9 Ohm/1000ft (81.7 Ohm/km); Max. Current: Single conductor in free air @ 30ºC: 8.5 A
- UL Voltage Rating: 600 V RMS
Mechanical Characteristics
- UL Temperature: 105°C; Operating: -40°C To +105°C Dry
- Stationary Min.: 0.2 in (5.1 mm); Installation Min.: 0.2 in (5.1 mm)
- Bulk Cable Weight: 2 lbs/1000ft (3.0 kg/km)
Standards and Compliance
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: VW-1
- AWM Compliance: AWM 11028
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
Product Notes
- Notes: Halogen-free.
History
- Update and Revision: Revision Number: 0.413 Revision Date: 10-27-2026
- Footnote: C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
