Belden 39116 005100 Lead Wire, #16 Str TC, PPO Ins, AWM 11028
Low Temp Plastic Lead Wire, 16AWG (26x30) Tinned Copper, PPO Insulation, AWM 11028 600V 105C VW-1
Ordering Details
- Manufacturer Part Number: 39116 005100
- Color: Green, Dark
- Length: 100 ft
- Put-Up: Reel
- UPC/EAN: 612825148999
- Manufacturer Footnote: C
Supplied as one 100 ft Reel.

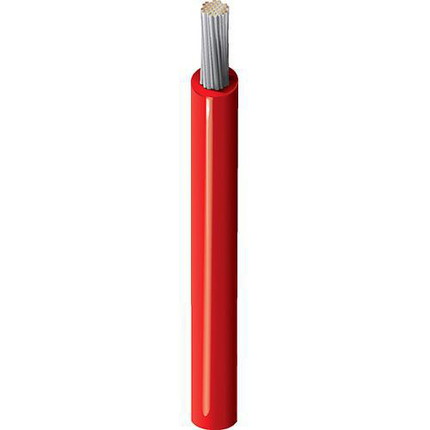

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Electrical panel builders, Electrical/electronic manufacturers, Appliance manufacturers, Furniture, Computer manufacturers, Automotive companies and their sub-suppliers
Construction Details
- Element: Conductor(s); No. of Elements: 1; Size: 16 AWG; Stranding: 26x30; Material: TC - Tinned Copper
- Material: PPO - Polyphenylene Oxide; Nom. Thickness: 0.012 in (0.30 mm); Nom. Insulation Diameter: 0.083 in (2.1 mm)
- Overall Cable Diameter (Nominal): 0.083 in (2.1 mm)
Electrical Characteristics
- Nom. Conductor DCR: 4.0 Ohm/1000ft; Max. Current: Single conductor in free air @ 30ºC: 26 A
- UL Voltage Rating: 600 V RMS
Mechanical Characteristics
- UL Temperature: 105°C; Operating: -40°C To +105°C Dry
- Stationary Min.: 0.83 in (21 mm); Installation Min.: 0.83 in (21 mm)
- Max. Pull Tension: 27 lbs (12 kg)
- Bulk Cable Weight: 10 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor, Outdoor
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: VW-1
- AWM Compliance: AWM 11028
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
Product Notes
- Notes: Halogen-free.
History
- Update and Revision: Revision Number: 0.493 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
