Belden 38208 0105000 UL Type PV Wire, #8 Str TC, XLPO Ins, PVC Jkt, 600V PV 90C Dry/Wet - Black, 5,000 ft Reel

$18,544.99
SKU:
38208 0105000
Shipping:
Calculated at Checkout
Color:
Black
Length:
5,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
38208
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 38208 0105000 UL Type PV Wire, #8 Str TC, XLPO Ins, PVC Jkt, 600V PV 90C Dry/Wet

UL Type PV Wire, 8AWG (133(7x19)x29) Tinned Copper, XLPO Insulation, PVC Outer Jacket, 600V PV 90C Dry/Wet USE-2 RHW-2 SUN RES

Ordering Details

  • Manufacturer Part Number: 38208 0105000
  • Color: Black
  • Length: 5,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825147619
  • Manufacturer Footnote: C

Supplied as one 5,000 ft Reel.

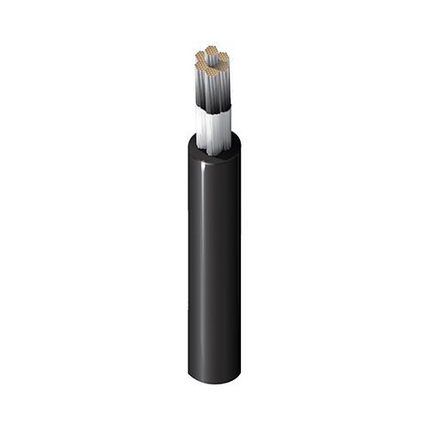

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Section 690.31(A) of the 2008 NEC.

Construction Details

  • Size: 8; Stranding: 133x29; Material: TC - Tinned Copper
  • Material: XLP, XLPO, XLPE (Thermoset); Nom. Thickness: 0.063 in (1.6 mm)
  • Material: XLP, XLPO, XLPE (Thermoset)
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.033 in (0.84 mm); Nom. Diameter: 0.364 in (9.25 mm)

Electrical Characteristics

  • Nom. Conductor DCR: 0.61 Ohm/1000ft (2.0 Ohm/km); Max. Current: 80 Amps Single Conductor in Free Air
  • UL Voltage Rating: 600 V

Mechanical Characteristics

  • UL Temperature: 90°C Wet/Dry; Operating: -40°C To +90°C
  • Max. Pull Tension: 213 lbs (96.6 kg)
  • Bulk Cable Weight: 98 lbs/1000ft (150 kg/km)

Standards and Compliance

  • Environmental Suitability: Sunlight Resistance
  • Flammability / Reaction to Fire: VW-1
  • NEC / UL Compliance: PV, RHW-2, USE-2
  • AWM Compliance: N/A
  • Military Compliance: N/A
  • European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: Separator material over conductor.

History

  • Update and Revision: Revision Number: 0.602 Revision Date: 01-15-2026
  • Footnote: C - CRATE REEL PUT-UP.
