Description
Belden 37540 010500 Lead Wire, #4/0 Str TC, EPDM Ins, AWM 3499
Rubber Lead Wire, 4/0AWG (805x26) Tinned Copper, EPDM Insulation, AWM 3499 7500V 150C
Ordering Details
- Manufacturer Part Number: 37540 010500
- Color: Black
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825147435
- Manufacturer Footnote: C F
Supplied as one 500 ft Reel.

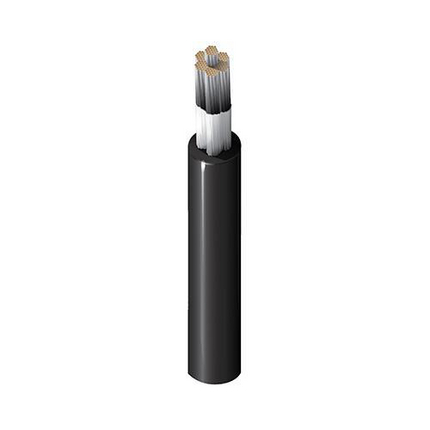

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: internal wiring of appliances and ballast leads
Construction Details
- Element: Conductor(s); No. of Elements: 1; Size: 4/0 AWG; Stranding: 805x26; Material: TC - Tinned Copper
- Material: EPDM - Ethylene Propylene Diene Monomer; Nom. Thickness: 0.129 in (3.28 mm); Nom. Insulation Diameter: 0.909 in (23.1 mm)
- Overall Cable Diameter (Nominal): 0.909 in (23.1 mm)
Electrical Characteristics
- Nom. Conductor DCR: 0.0574 Ohm/1000ft; Max. Current: 531.2 Amps per Conductor at 30ºC
- UL Voltage Rating: 7500 V (AWM 3499)
Mechanical Characteristics
- UL Temperature: 150°C; Operating: -55°C To +150°C
- Stationary Min.: 9.09 in (231 mm); Installation Min.: 9.09 in (231 mm)
- Max. Pull Tension: 2648 lbs (1201 kg)
- Bulk Cable Weight: 890 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor, Outdoor
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: Horizontal flame
- AWM Compliance: AWM 3499
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: Exact strand count may vary.
History
- Update and Revision: Revision Number: 0.495 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP., F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.
