Belden 37502 01050 Lead Wire, #2 Str TC, EPDM Ins, AWM 3499 - Black, 50 ft Reel

$1,493.99
SKU:
37502 01050
Shipping:
Calculated at Checkout
Color:
Black
Length:
50 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
37502
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 37502 01050 Lead Wire, #2 Str TC, EPDM Ins, AWM 3499

Rubber Lead Wire, 2AWG (163x24) Tinned Copper, EPDM Insulation, AWM 3499 7500V 150C

Ordering Details

  • Manufacturer Part Number: 37502 01050
  • Color: Black
  • Length: 50 ft
  • Put-Up: Reel
  • UPC/EAN: 612825147275
  • Manufacturer Footnote: C

Supplied as one 50 ft Reel.

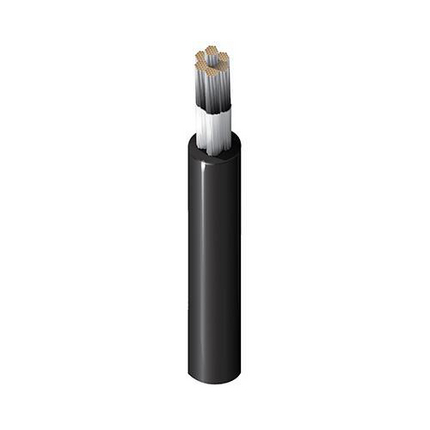

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: internal wiring of appliances, high voltage and high temperature applications

Construction Details

  • Element: Conductor(s); No. of Elements: 1; Size: 2 AWG; Stranding: 163x24; Material: TC - Tinned Copper
  • Material: EPDM - Ethylene Propylene Diene Monomer; Nom. Thickness: 0.131 in (3.33 mm); Nom. Insulation Diameter: 0.581 in (14.8 mm)
  • Overall Cable Diameter (Nominal): 0.581 in (14.8 mm)

Electrical Characteristics

  • Nom. Conductor DCR: 0.172 Ohm/1000ft; Max. Current: 256 Amps per Conductor at 30ºC
  • UL Voltage Rating: 7500 V (AWM 3499)

Mechanical Characteristics

  • UL Temperature: 150°C; Operating: -55°C To +150°C
  • Stationary Min.: 5.81 in (148 mm); Installation Min.: 5.81 in (148 mm)
  • Max. Pull Tension: 824.6 lbs (374.0 kg)
  • Bulk Cable Weight: 317 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor, Outdoor
  • Sustainability: CA Prop 65
  • Flammability / Reaction to Fire: Horizontal flame
  • AWM Compliance: AWM 3499
  • European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: Separartor Material over Conductor: Y

History

  • Update and Revision: Revision Number: 0.488 Revision Date: 02-20-2026
  • Footnote: C - CRATE REEL PUT-UP., F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.
