Belden 37112 010500 Lead Wire, #12 Str TC, EPDM Ins, AWM 3340 AWM 3374 - Black, 500 ft Reel

$1,320.99
SKU:
37112 010500
Shipping:
Calculated at Checkout
Color:
Black
Length:
500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
37112
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 37112 010500 Lead Wire, #12 Str TC, EPDM Ins, AWM 3340 AWM 3374

Rubber Lead Wire, 12AWG (65x30) Tinned Copper, EPDM Insulation, AWM 3340 AWM 3374 CSA TYPE CL1254 600V 125C FLEX 150C NO FLEX

Ordering Details

  • Manufacturer Part Number: 37112 010500
  • Color: Black
  • Length: 500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825146865
  • Manufacturer Footnote: C F

Supplied as one 500 ft Reel.

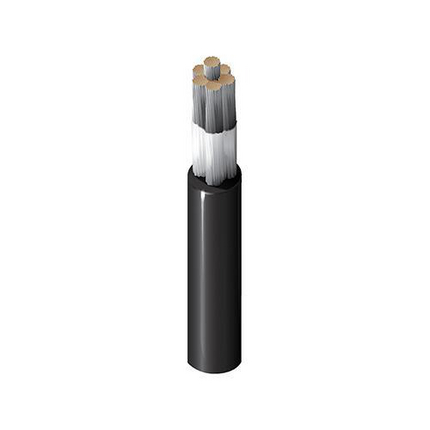

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Class 130(B), 155(F) and also in some 180(H) motor lead systems, high temperature, internal wiring of appliances

Construction Details

  • Element: Conductor(s); No. of Elements: 1; Size: 12 AWG; Stranding: 65x30; Material: TC - Tinned Copper
  • Material: EPDM - Ethylene Propylene Diene Monomer; Nom. Thickness: 0.052 in (1.3 mm); Nom. Insulation Diameter: 0.19 in (4.8 mm)
  • Overall Cable Diameter (Nominal): 0.190 in (4.83 mm)

Electrical Characteristics

  • Nom. Conductor DCR: 1.77 Ohm/1000ft; Max. Current: 68.8 Amps per Conductor at 30ºC
  • UL Voltage Rating: 600 V (AWM 3340, AWM 3374)

Mechanical Characteristics

  • UL Temperature: 150°C; Operating: -55°C To +150°C
  • Stationary Min.: 1.9 in (48 mm); Installation Min.: 1.9 in (48 mm)
  • Max. Pull Tension: 84.5 lbs (38.3 kg)
  • Bulk Cable Weight: 33 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor, Outdoor
  • Sustainability: CA Prop 65
  • Flammability / Reaction to Fire: Horizontal flame
  • AWM Compliance: AWM 3340, AWM 3374
  • CEC / C(UL) Compliance: CL-1254
  • European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.472 Revision Date: 02-20-2026
  • Footnote: C - CRATE REEL PUT-UP., F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'., I - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 200'., M - FINAL PUT-UP LENGTH MAY VARY -10% TO +0% FROM LENGTH SHOWN.

Resources

Belden 37112 Product Information
