Description
Belden 37110 0105000 Lead Wire, #10 Str TC, EPDM Ins, AWM 3340 AWM 3374
Rubber Lead Wire, 10AWG (65x28) Tinned Copper, EPDM Insulation, AWM 3340 AWM 3374 CSA TYPE CL1254 600V 125C FLEX 150C NO FLEX
Ordering Details
- Manufacturer Part Number: 37110 0105000
- Color: Black
- Length: 5,000 ft
- Put-Up: Reel
- UPC/EAN: 612825146834
- Manufacturer Footnote: C
Supplied as one 5,000 ft Reel.

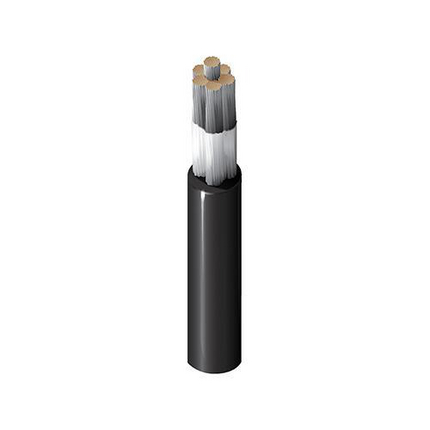

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Class 130(B), 155(F) and also in some 180(H) motor lead systems, high temperature, internal wiring of appliances
Construction Details
- Element: Conductor(s); No. of Elements: 1; Size: 10 AWG; Stranding: 65x28; Material: TC - Tinned Copper
- Material: EPDM - Ethylene Propylene Diene Monomer; Nom. Thickness: 0.064 in (1.6 mm); Nom. Insulation Diameter: 0.24 in (6.1 mm)
- Overall Cable Diameter (Nominal): 0.24 in (6.1 mm)
Electrical Characteristics
- Nom. Conductor DCR: 1.11 Ohm/1000ft; Max. Current: 88 Amps per Conductor at 30ºC
- UL Voltage Rating: 600 V (AWM 3340, AWM 3374)
Mechanical Characteristics
- UL Temperature: 150°C; Operating: -55°C To +150°C
- Stationary Min.: 2.4 in (61 mm); Installation Min.: 2.4 in (61 mm)
- Max. Pull Tension: 130 lbs (59 kg)
- Bulk Cable Weight: 52 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor, Outdoor
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: Horizontal flame
- AWM Compliance: AWM 3340, AWM 3374
- CEC / C(UL) Compliance: CL-1254
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.485 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP.
