Description
Belden 37100 010500 Lead Wire, #2/0 Str TC, EPDM Ins, AWM 3340 AWM 3374
Rubber Lead Wire, 2/0AWG (504x26) Tinned Copper, EPDM Insulation, AWM 3340 AWM 3374 CSA TYPE CL1254 600V 125C FLEX 150C NO FLEX
Ordering Details
- Manufacturer Part Number: 37100 010500
- Color: Black
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825146612
- Manufacturer Footnote: C
Supplied as one 500 ft Reel.

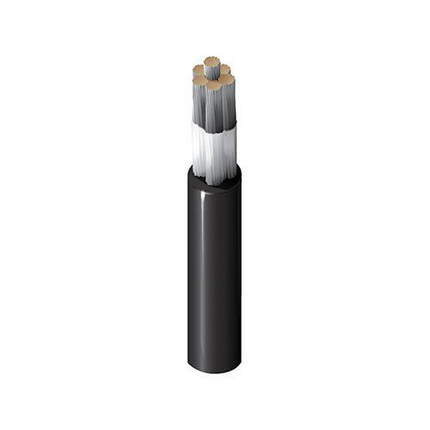

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Class 130(B), 155(F) and also in some 180(H) motor lead systems, high temperature, internal wiring of appliances
Construction Details
- Element: Conductor(s); No. of Elements: 1; Size: 2/0 AWG; Stranding: 504x26; Material: TC - Tinned Copper
- Material: EPDM - Ethylene Propylene Diene Monomer; Nom. Thickness: 0.106 in (2.69 mm); Nom. Insulation Diameter: 0.683 in (17.3 mm)
- Overall Cable Diameter (Nominal): 0.683 in (17.3 mm)
Electrical Characteristics
- Nom. Conductor DCR: 0.0913 Ohm/1000ft; Max. Current: 401.6 Amps per Conductor at 30ºC
- UL Voltage Rating: 600 V (AWM 3340, AWM 3374)
Mechanical Characteristics
- UL Temperature: 150°C; Operating: -55°C To +150°C
- Stationary Min.: 6.83 in (173 mm); Installation Min.: 6.83 in (173 mm)
- Max. Pull Tension: 1606 lbs (728.5 kg)
- Bulk Cable Weight: 538 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor, Outdoor
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: Horizontal flame
- AWM Compliance: AWM 3340, AWM 3374
- CEC / C(UL) Compliance: CL-1254
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: Exact strand count may vary. Separator tape over conductor.
History
- Update and Revision: Revision Number: 0.492 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP., F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.
