Description
Belden 34918 010500 Lead Wire, #18 Str TC, CSPE Ins, AWM 3190
Low Temp Rubber Lead Wire, 18AWG (16x30) Tinned Copper, CSPE Insulation, AWM 3190 CSA TYPE CL1052 300V 105C
Ordering Details
- Manufacturer Part Number: 34918 010500
- Color: Black
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825144298
- Manufacturer Footnote: F
Supplied as one 500 ft Reel.

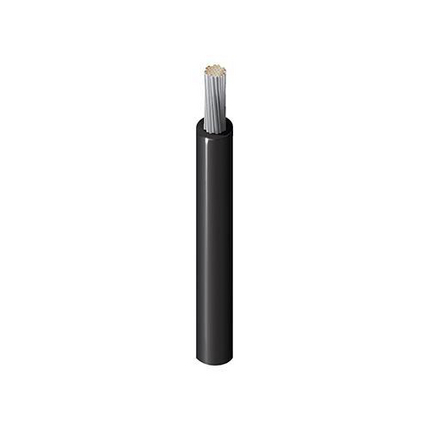

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Class 130(B) motor lead systems, internal wiring of appliances, oil resistance applications
Construction Details
- Size: 18; Stranding: 16x30; Material: TC - Tinned Copper
- Material: CSPE - Chlorosulphonated Polyethylene; Nom. Thickness: 0.032 in (0.81 mm); Nom. Insulation Diameter: 0.11 in (2.8 mm)
- Overall Cable Diameter (Nominal): 0.110 in (2.79 mm)
Electrical Characteristics
- UL Voltage Rating: 300 V RMS
Mechanical Characteristics
- UL Temperature: 105°C
- Bulk Cable Weight: 10 lbs/1000ft (15 kg/km)
Standards and Compliance
- Sustainability: CA Prop 65
- AWM Compliance: AWM 3190
- CEC / C(UL) Compliance: CL-1052
- European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.359 Revision Date: 10-27-2026
- Footnote: F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'., C - CRATE REEL PUT-UP., I - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 200'., U - TOPCOAT ADDERS ON STOCK SOLID COLORS. MINIMUM ORDER 10,000' PER COLOR COMBINATION. (SEE TOPCOAT ADDER TABLE), Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
