Description
Belden 34401 01050 Lead Wire, #1 Str TC, CSPE Ins, AWM 3193
Low Temp Rubber Lead Wire, 1AWG (210x24) Tinned Copper, CSPE Insulation, AWM 3193 CSA TYPE CL1052 600V 105C
Ordering Details
- Manufacturer Part Number: 34401 01050
- Color: Black
- Length: 50 ft
- Put-Up: Reel
- UPC/EAN: 612825143673
Supplied as one 50 ft Reel.

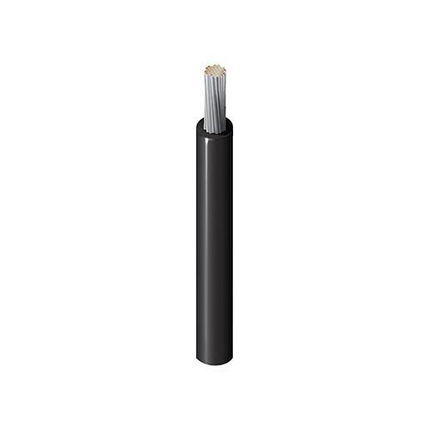

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Class 130(B) motor lead systems, internal wiring of appliances, oil resistance applications
Construction Details
- Element: Conductor(s); No. of Elements: 1; Size: 1; Stranding: 210x24; Material: TC - Tinned Copper
- Material: CSPE - Chlorosulphonated Polyethylene; Nom. Thickness: 0.091 in (2.3 mm); Nom. Insulation Diameter: 0.557 in (14.1 mm)
- Overall Cable Diameter (Nominal): 0.557 in (14.1 mm)
Electrical Characteristics
- UL Voltage Rating: 600 V RMS (UL AWM 3193), 300 V RMS (CSA CL1052)
Mechanical Characteristics
- UL Temperature: 105°C; Operating: -30°C To +105°C
- Stationary Min.: 2.23 in (56.6 mm); Installation Min.: 2.23 in (56.6 mm)
- Max. Pull Tension: 1303 lbs (591.0 kg)
- Bulk Cable Weight: 368 lbs/1000ft
Standards and Compliance
- Sustainability: CA Prop 65
- AWM Compliance: AWM 3193
- CEC / C(UL) Compliance: CL-1052
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: Separator material over conductor.
History
- Update and Revision: Revision Number: 0.453 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP., F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.
