Description
Belden 34017 0082000 Lead Wire, #17 Str TC, Silicone Ins, AWM 3123
Low Temp Rubber Lead Wire, 17AWG (210x40) Tinned Copper, Silicone Insulation, AWM 3123 600V 150C
Ordering Details
- Manufacturer Part Number: 34017 0082000
- Color: Gray
- Length: 2,000 ft
- Put-Up: Reel
- UPC/EAN: 612825143598
- Manufacturer Footnote: C
Supplied as one 2,000 ft Reel.

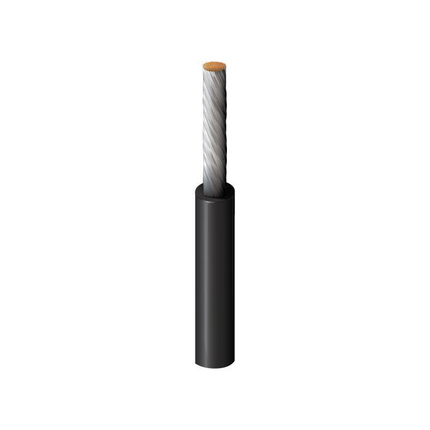

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: mercury switches, internal wiring of appliances, high temperature applications, flexing applications
Construction Details
- Size: 17; Stranding: 210x40; Material: TC - Tinned Copper
- Material: Silicone Rubber; Nom. Thickness: 0.03 in (0.76 mm)
- Overall Cable Diameter (Nominal): 0.118 in (3.00 mm)
Electrical Characteristics
- UL Voltage Rating: 600 V RMS
Mechanical Characteristics
- UL Temperature: 150°C
- Bulk Cable Weight: 12 lbs/1000ft (18 kg/km)
Standards and Compliance
- Sustainability: CA Prop 65
- AWM Compliance: AWM 3123
- European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.372 Revision Date: 10-27-2026
- Footnote: C - CRATE REEL PUT-UP.
