Description
Belden 32718 0104000 Lead Wire, #18 Str TC UNISTRAND, PVC Ins, AWM 1015
Low Temp Plastic Lead Wire, 18AWG (7x26) Tinned Copper Unistrand, PVC Insulation, AWM 1015 CSA TYPE TEW JQA-F 600V 105C VW-1
Ordering Details
- Manufacturer Part Number: 32718 0104000
- Color: Black
- Length: 4,000 ft
- Put-Up: Reel
- UPC/EAN: 612825143222
Supplied as one 4,000 ft Reel.

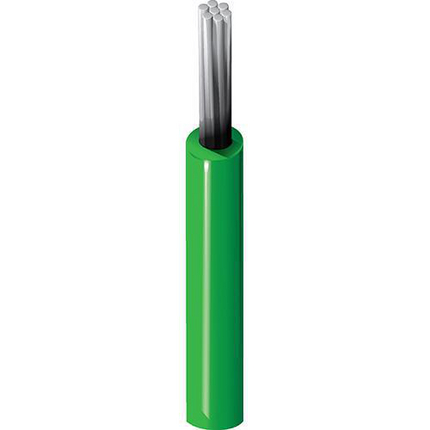

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: inter-connection circuits, internal wiring of computer and electronic equipments, internal wiring of appliances
Construction Details
- Size: 18; Stranding: 7x26; Material: TC - Tinned Copper
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.032 in (0.81 mm); Nom. Insulation Diameter: 0.108 in (2.74 mm)
- Overall Cable Diameter (Nominal): 0.108 in (2.74 mm)
Electrical Characteristics
- UL Voltage Rating: 600 V RMS; Voltage Rating: 600 V
Mechanical Characteristics
- UL Temperature: 105°C
- Bulk Cable Weight: 9.8 lbs/1000ft (15 kg/km)
Standards and Compliance
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: VW-1
- AWM Compliance: AWM 1015
- CEC / C(UL) Compliance: TEW
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
History
- Update and Revision: Revision Number: 0.373 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
