Description
Belden 32516 010500 Lead Wire, #16 Str TC, Neoprene Ins, AWM 3046
Low Temp Rubber Lead Wire, 16AWG (26x30) Tinned Copper, Neoprene Insulation, AWM 3046 CSA TYPE CL903600V 90C
Ordering Details
- Manufacturer Part Number: 32516 010500
- Color: Black
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825142898
- Manufacturer Footnote: F
Supplied as one 500 ft Reel.

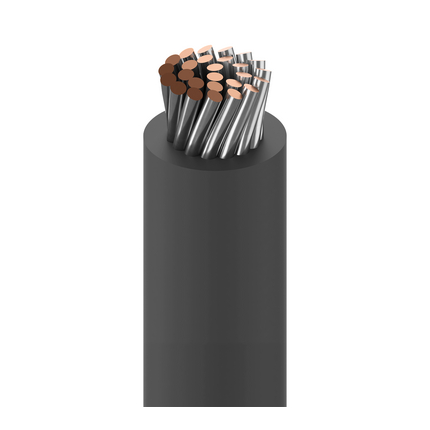

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: internal wiring of appliances, oil resistance applications, motor lead systems
Construction Details
- Size: 16; Stranding: 26x30; Material: TC - Tinned Copper
- Material: Neoprene; Nom. Thickness: 0.048 in (1.2 mm)
- Overall Cable Diameter (Nominal): 0.155 in (3.94 mm)
Electrical Characteristics
- UL Voltage Rating: 600 V RMS
Mechanical Characteristics
- UL Temperature: 90°C
- Bulk Cable Weight: 20 lbs/1000ft (30 kg/km)
Standards and Compliance
- Sustainability: CA Prop 65
- AWM Compliance: AWM 3046
- CEC / C(UL) Compliance: CL-903
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: Recommended Maximum Baking Cycles: 24 Hours @ 300°F (149°C) ~ 8 Hours @ 325°F (163°C) ~ 15 Minutes @ 450°F (232°C)
History
- Update and Revision: Revision Number: 0.419 Revision Date: 02-20-2026
- Footnote: F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'., I - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 200'., U - TOPCOAT ADDERS ON STOCK SOLID COLORS. MINIMUM ORDER 10,000' PER COLOR COMBINATION. (SEE TOPCOAT ADDER TABLE), Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
