Belden 32418 010500 Lead Wire, #18 Str TC, Silicone Ins, Fiber Glass Jkt, AWM 3071 - Black, 500 ft Reel

$836.99
SKU:
32418 010500
Shipping:
Calculated at Checkout
Color:
Black
Length:
500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
32418
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

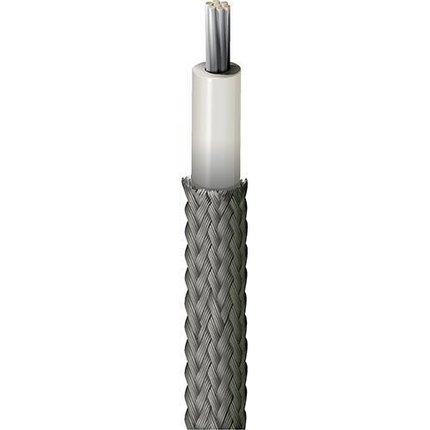

Belden 32418 010500 Lead Wire, #18 Str TC, Silicone Ins, Fiber Glass Jkt, AWM 3071

Rubber Lead Wire, 18AWG (7x26) Tinned Copper, Silicone Insulation, Fiber Glass Outer Jacket, AWM 3071 CSA SEW-2 600V 200C

Ordering Details

  • Manufacturer Part Number: 32418 010500
  • Color: Black
  • Length: 500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825142812
  • Manufacturer Footnote: F

Supplied as one 500 ft Reel.

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Class 130(B), 155(F)or 180(H) insulation systems, internal wiring of lighting fixtures and appliances, high temperature applications

Construction Details

  • Size: 18; Stranding: 7x26.5; Material: TC - Tinned Copper
  • Material: Silicone Rubber; Nom. Thickness: 0.03 in (0.76 mm)
  • Material: Lacquered Glass Braid Covering; Nom. Diameter: 0.133 in
  • Overall Cable Diameter (Nominal): 0.133 in (3.38 mm)

Electrical Characteristics

  • UL Voltage Rating: 600 V RMS

Mechanical Characteristics

  • UL Temperature: 200°C
  • Bulk Cable Weight: 15 lbs/1000ft (22 kg/km)

Standards and Compliance

  • Sustainability: CA Prop 65
  • Flammability / Reaction to Fire: Horizontal
  • AWM Compliance: AWM 3071
  • CEC / C(UL) Compliance: SEW-2
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: Recommended Maximum Baking Cycles: 24 hours @ 410°F (210°C

History

  • Update and Revision: Revision Number: 0.370 Revision Date: 10-27-2026
  • Footnote: F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'., C - CRATE REEL PUT-UP., I - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 200'., Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
