Description
Belden 31518 0102000 Lead Wire, #18 Str TC, Neoprene Ins, AWM 3044
Low Temp Rubber Lead Wire, 18AWG (19x30) Tinned Copper, Neoprene Insulation, AWM 3044 CSA TYPE CL902 300V 90C
Ordering Details
- Manufacturer Part Number: 31518 0102000
- Color: Black
- Length: 2,000 ft
- Put-Up: Reel
- UPC/EAN: 612825142409
- Manufacturer Footnote: C 1
Supplied as one 2,000 ft Reel.

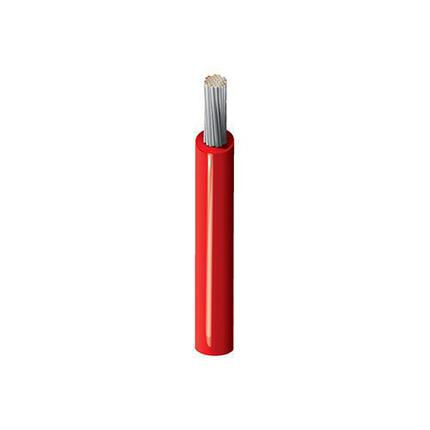

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: internal wiring of appliances, oil resistance applications, motor lead systems
Construction Details
- Element: Conductor(s); No. of Elements: 1; Size: 18 AWG; Stranding: 19x30; Material: TC - Tinned Copper
- Material: Neoprene; Nom. Thickness: 0.032 in (0.81 mm); Nom. Insulation Diameter: 0.109 in (2.77 mm)
- Overall Cable Diameter (Nominal): 0.109 in (2.77 mm)
Electrical Characteristics
- Nom. Conductor DCR: 7.06 Ohm/1000ft; Max. Current: 22.4 Amps per Conductor at 30ºC
- UL Voltage Rating: 300 V (AWM 3044)
Mechanical Characteristics
- UL Temperature: 90°C; Operating: -30°C To +90°C
- Stationary Min.: 1.09 in (27.7 mm); Installation Min.: 1.09 in (27.7 mm)
- Max. Pull Tension: 24.7 lbs (11.2 kg)
- Bulk Cable Weight: 10 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor, Outdoor, Oil Resistance
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: Horizontal flame
- AWM Compliance: AWM 3044
- CEC / C(UL) Compliance: CL-902
- European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: 24 Hours @ 300°F (149°C) ~ 8 Hours @ 325°F (163°C) ~ 15 Minutes @ 450°F (232°C)
History
- Update and Revision: Revision Number: 0.503 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP., I - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 200'., U - TOPCOAT ADDERS ON STOCK SOLID COLORS. MINIMUM ORDER 10,000' PER COLOR COMBINATION. (SEE TOPCOAT ADDER TABLE), Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN., 1 - FINAL PUT-UP LENGTH MAY VARY -20% TO +10% FROM LENGTH SHOWN., F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.
