Description
Belden 31508 002500 Lead Wire, #8 Str TC, Neoprene Ins, AWM 3048
Low Temp Rubber Lead Wire, 8AWG (84x27) Tinned Copper, Neoprene Insulation, AWM 3048 600V 90C
Ordering Details
- Manufacturer Part Number: 31508 002500
- Color: Red
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825142126
- Manufacturer Footnote: C F
Supplied as one 500 ft Reel.

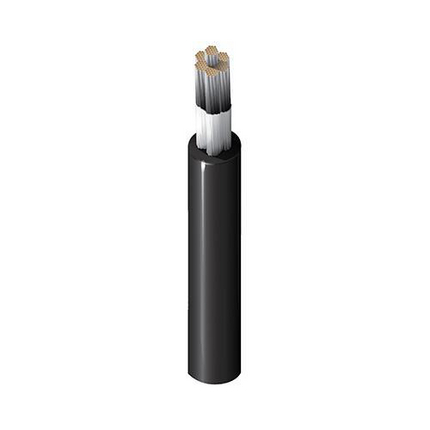

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: internal wiring of appliances, oil resistance applications, motor lead systems
Construction Details
- Element: Conductor(s); No. of Elements: 1; Size: 8 AWG; Stranding: 84x27; Material: TC - Tinned Copper
- Material: Neoprene; Nom. Thickness: 0.062 in (1.6 mm); Nom. Insulation Diameter: 0.285 in (7.24 mm)
- Overall Cable Diameter (Nominal): 0.285 in (7.24 mm)
Electrical Characteristics
- Nom. Conductor DCR: 0.708 Ohm/1000ft; Max. Current: 88 Amps per Conductor at 30ºC
- UL Voltage Rating: 600 V (AWM 3048)
Mechanical Characteristics
- UL Temperature: 90°C; Operating: -30°C To +90°C
- Stationary Min.: 2.85 in (72.4 mm); Installation Min.: 2.85 in (72.4 mm)
- Max. Pull Tension: 210 lbs (95 kg)
- Bulk Cable Weight: 85 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor, Outdoor
- Sustainability: CA Prop 65, Product Lens™
- Flammability / Reaction to Fire: Horizontal flame
- AWM Compliance: AWM 3048
- European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
Product Notes
- Notes: Separator Material over Conductor: Y, Recommended Maximum Baking Cycles: 24 Hours @ 300°F (149°C) ~ 8 Hours @ 325°F (163°C) ~ 15 Minutes @ 450°F (232°C)
History
- Update and Revision: Revision Number: 0.491 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP., F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.
