Belden 3124A 0031000 DeviceBus® for Square D/Seriplex®, 2 Pr #18+22 Str TC, FPE Ins, OS, PVC Jkt, CM - Orange, 1,000 ft Reel

$3,676.99
SKU:
3124A 0031000
Shipping:
Calculated at Checkout
Color:
Orange
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
3124A
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 3124A 0031000 DeviceBus® for Square D/Seriplex®, 2 Pr #18+22 Str TC, FPE Ins, OS, PVC Jkt, CM

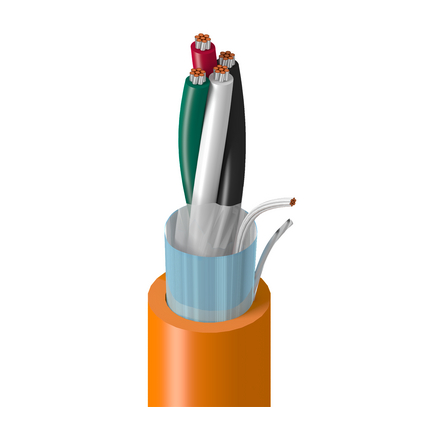

DeviceBus® for Square D/Seriplex®, 2 Pair 18+22AWG (16x30+7x30) Tinned Copper, FPE Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CM

Ordering Details

  • Manufacturer Part Number: 3124A 0031000
  • Color: Orange
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825142010
  • Manufacturer Footnote: C

Supplied as one 1,000 ft Reel.

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

Construction Details

  • Element: Power Pair(s); No. of Elements: 1; Size: 18 AWG; Stranding: 16x30; Material: TC - Tinned Copper
  • Element: Data Pair(s); No. of Elements: 1; Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
  • Element: Power Pair(s); Material: PE - Polyethylene (Foam); Nom. Thickness: 0.026 in (0.66 mm); Color Code: Black & Red; Notes: HDPE
  • Element: Data Pair(s); Material: PE - Polyethylene (Foam); Nom. Thickness: 0.0315 in (0.800 mm); Color Code: White & Green; Notes: HDPE
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 22 AWG (7x30) TC; Notes: Foam PP tape under foil tape
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.039 in (0.99 mm); Nom. Diameter: 0.308 in (7.82 mm); Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.308 in (7.82 mm)

Electrical Characteristics

  • Element: Power Pair(s); Nom. Conductor DCR: 6.8 Ohm/1000ft (22 Ohm/km); Nom. Capacitance Cond-to-Shield: 20 pF/ft (66 pF/m)
  • Element: Data Pair(s); Nom. Conductor DCR: 18.1 Ohm/1000ft (59.4 Ohm/km); Nom. Capacitance Cond-to-Shield: 16 pF/ft (52 pF/m); Nom. Characteristic Impedence: 120 Ohm; Nom. Velocity of Prop.: 78%
  • Nom Outer Shield DCR: 10.7 Ohm/1000ft (35.1 Ohm/km)
  • UL Voltage Rating: 300 V (CM), 600 V (UL AWM 20201)

Mechanical Characteristics

  • UL Temperature: 75°C; Operating: -20°C to +75°C
  • Stationary Min.: 3.75 in (95.3 mm); Installation Min.: 3.75 in
  • Max. Pull Tension: 60 lbs (27 kg)
  • Bulk Cable Weight: 39.3 lbs/1000ft (58.5 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor
  • Flammability / Reaction to Fire: UL1685 UL Loading
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 725, Article 800, CL2, CM
  • AWM Compliance: AWM 20201
  • CEC / C(UL) Compliance: CM
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.459 Revision Date: 02-20-2026
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 3124A Product Information
