Belden 3111A 0101000 Type JX Thermocouple, 1 Pr #20 Sol, PVC Ins Wht, Red, OS, Blk PVC Jkt, 300V PLTC ITC CMG
Type JX Thermocouple, 1 Pair 20AWG (Solid) Iron+Constantan, PVC Insulation Wht, Red Color Code, Overall Beldfoil® Shield, Black PVC Outer Jacket, PLTC ITC CMG AWM 2464 SUN RES
Ordering Details
- Manufacturer Part Number: 3111A 0101000
- Color: Black
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825141860
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.

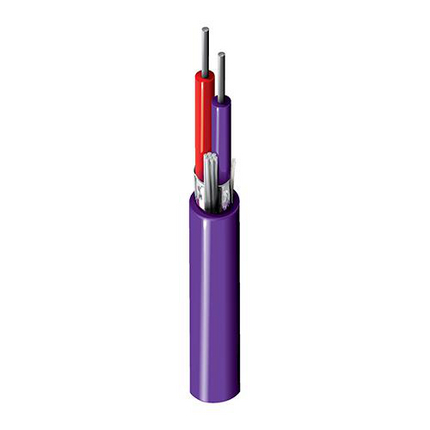

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …),Thermocouple, distributed control system (DCS),programmable logic controller (PLC)
Construction Details
- Element: Pair(s); No. of Elements: 1; Size: 20 AWG; Stranding: Solid; Material: Iron & Constantan
- Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.021 in (0.53 mm); Color Code: White & Red
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 22 AWG (7x30) TC
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.037 in (0.94 mm); Nom. Diameter: 0.226 in (5.74 mm); Ripcord: Yes
- Overall Cable Diameter (Nominal): 0.226 in (5.74 mm)
Electrical Characteristics
- Element: Pair(s)
- Nom Outer Shield DCR: 10.6 Ohm/1000ft (34.8 Ohm/km)
- UL Voltage Rating: 300 V (PLTC, CMG, UL AWM 2464), 150 V (ITC)
Mechanical Characteristics
- UL Temperature: 105°C; Operating: -30°C to +105°C
- Stationary Min.: 2.3 in (58 mm); Installation Min.: 2.3 in (58 mm)
- Max. Pull Tension: 29 lbs (13 kg)
- Bulk Cable Weight: 26 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance
- Flammability / Reaction to Fire: UL1685 (FT4 Loading), FT4, 1202
- NEC / UL Compliance: Article 725, Article 727, Article 800, CMG, ITC, PLTC
- AWM Compliance: AWM 2464
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Other Standard Compliance(s): ISA MC 96.1-1982 Type JX
Product Notes
- Notes: Constantan is a Hoskins Manufacturing Company trademark.
