Belden 3108A 0105000 RS485, 3 Pr #22 Str TC, PE Ins, OS+TC Brd, PVC Jkt, CM, PLTC, Oil Resistant - Black, 5,000 ft Reel

$38,761.99
SKU:
3108A 0105000
Shipping:
Calculated at Checkout
Color:
Black
Length:
5,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
3108A
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 3108A 0105000 RS485, 3 Pr #22 Str TC, PE Ins, OS+TC Brd, PVC Jkt, CM, PLTC, Oil Resistant

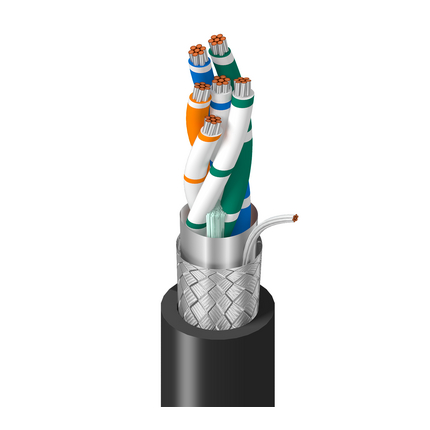

RS-485, 3 Pair 22AWG (7x30) Tinned Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(65%) Shield, PVC Outer Jacket, CM, PLTC, and oil-resistant

Ordering Details

  • Manufacturer Part Number: 3108A 0105000
  • Color: Black
  • Length: 5,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825141754

Supplied as one 5,000 ft Reel.

Product Overview

  • Suitable Applications: harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

Construction Details

  • Element: Pair(s); No. of Elements: 3; Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
  • Element: Pair(s); Material: PE - Polyethylene (Foam); Nom. Thickness: 0.023 in (0.58 mm); Nom. Insulation Diameter: 0.075 in (1.9 mm); Color Code: White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe; Notes: HDPE
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 22 AWG (7x30) TC
  • Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 65%
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.053 in (1.3 mm); Nom. Diameter: 0.374 in (9.50 mm)
  • Overall Cable Diameter (Nominal): 0.374 in (9.50 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 18.2 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 11 pF/ft (36 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 20.9 pF/ft (68.6 pF/m); Nom. Characteristic Impedence: 120 Ohm; Nom. Inductance: 0.225 µH/ft (0.738 µH/m); Nom. Velocity of Prop.: 78%; Max. Current: 4.2 Amps per Conductor at 30ºC
  • Nom Outer Shield DCR: 3.576 Ohm/1000ft (11.73 Ohm/km)
  • Element: Pair(s); Frequency [MHz]: 1; Nom. Insertion Loss (Attenuation): 0.5 dB/100ft
  • UL Voltage Rating: 300 V (CM, PLTC)

Mechanical Characteristics

  • UL Temperature: 60°C; Operating: -20°C to +60°C
  • Stationary Min.: 4.488 in (114.0 mm); Installation Min.: 4.488 in (114.0 mm)
  • Max. Pull Tension: 90 lbs (41 kg)
  • Bulk Cable Weight: 63 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, Oil Resistance
  • Flammability / Reaction to Fire: UL 1685 UL Loading, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 725, Article 800, CM, PLTC
  • CEC / C(UL) Compliance: CM
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: Oil Resistance: Passes Oil Res II Per UL1277, Table 10.17. For CPE jacketed version order YR45287.

History

  • Update and Revision: Revision Number: 0.552 Revision Date: 02-20-2026
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 3108A Product Information
