Description
Belden 3105A 010500 RS-485, 1 Pr, 22AWG, Str TC, PE Ins, OS+TC Brd, PVC Jkt, CM, PLTC, Sun Res, Oil Resistant

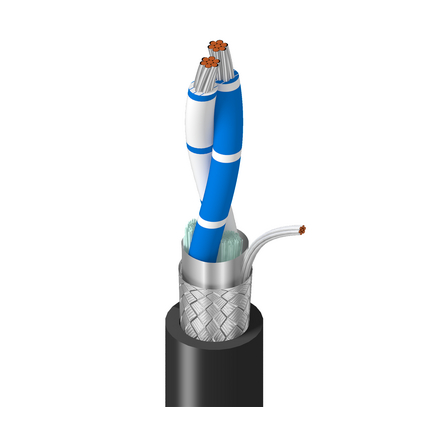

RS-485, 120 Ohm, 1 pair 22AWG (7x30) tinned copper Datalene® insulaton, Overall Foil + 65% Tinned Copper Braid, PVC jacket, CM, PLTC, SUN RES and oil-resistant
Ordering Details
- Manufacturer Part Number: 3105A 010500
- Color: Black
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825141600
- Manufacturer Footnote: C
Supplied as one 500 ft Reel.
Product Overview
- Suitable Applications: harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.
Construction Details
- Element: Pair(s); No. of Elements: 1; Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
- Element: Pair(s); Material: PE - Polyethylene (Foam); Nom. Thickness: 0.029 in (0.74 mm); Nom. Insulation Diameter: 0.087 in (2.2 mm); Color Code: White/Blue Stripe & Blue/White Stripe; Notes: HDPE
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 22 AWG (7x30) TC
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 65%
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.047 in (1.2 mm); Nom. Diameter: 0.294 in (7.47 mm)
- Outer Jacket1 Table Notes: Jacket OD +/- 0.006
- Overall Cable Diameter (Nominal): 0.294 in (7.47 mm)
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 18.2 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 11 pF/ft (36 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 20.9 pF/ft (68.6 pF/m); Nom. Characteristic Impedence: 120 Ohm; Nom. Velocity of Prop.: 78%; Max. Current: 6 Amps per Conductor at 30ºC
- Element: Conductor(s)
- Nom Outer Shield DCR: 4.685 Ohm/1000ft (15.37 Ohm/km)
- Element: Pair(s); Frequency [MHz]: 1; Nom. Insertion Loss (Attenuation): 0.5 dB/100ft
- UL Voltage Rating: 300 V (CM, PLTC)
Mechanical Characteristics
- UL Temperature: 60°C; Operating: -20°C to +60°C
- Stationary Min.: 3.372 in (85.65 mm); Installation Min.: 3.372 in (85.65 mm)
- Max. Pull Tension: 53.34 lbs (24.19 kg)
- Bulk Cable Weight: 43 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, Oil Resistance
- Flammability / Reaction to Fire: UL 1685 UL Loading, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
- NEC / UL Compliance: Article 725, Article 800, CM, PLTC
- CEC / C(UL) Compliance: CM
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: Oil Resistance: Passes Oil Res II Per UL1277, Table 10.17. For CPE jacketed version order Part No. YR44345.
History
- Update and Revision: Revision Number: 0.598 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP., N - FINAL PUT-UP LENGTH MAY VARY -0% TO +10% FROM LENGTH SHOWN.
