Belden 31014 0082500 Lead Wire, #14 Str TC, XLPO Ins, UL TYPE SIS VW-1 - Gray, 2,500 ft Reel

$3,116.99
SKU:
31014 0082500
Shipping:
Calculated at Checkout
Color:
Gray
Length:
2,500 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
31014
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 31014 0082500 Lead Wire, #14 Str TC, XLPO Ins, UL TYPE SIS VW-1

Low Temp Rubber Lead Wire, 14AWG (41x30) Tinned Copper, XLPO Insulation, UL TYPE SIS VW-1 600V 90C

Ordering Details

  • Manufacturer Part Number: 31014 0082500
  • Color: Gray
  • Length: 2,500 ft
  • Put-Up: Reel
  • UPC/EAN: 612825141563
  • Manufacturer Footnote: C U

Supplied as one 2,500 ft Reel.

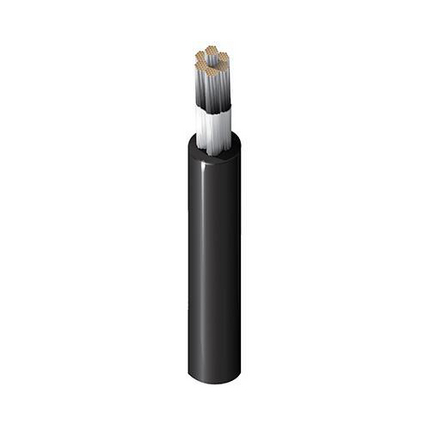

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: for wiring switchboards, panelboards , distribution boards

Construction Details

  • Size: 14; Stranding: 41x30; Material: TC - Tinned Copper
  • Material: XLP, XLPO, XLPE (Thermoset); Nom. Thickness: 0.032 in (0.81 mm)
  • Overall Cable Diameter (Nominal): 0.144 in (3.66 mm)

Electrical Characteristics

  • UL Voltage Rating: 600 V RMS

Mechanical Characteristics

  • UL Temperature: 90°C
  • Bulk Cable Weight: 20 lbs/1000ft (30 kg/km)

Standards and Compliance

  • Sustainability: CA Prop 65
  • Flammability / Reaction to Fire: VW-1
  • NEC / UL Compliance: Article 310, SIS
  • European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.365 Revision Date: 10-27-2026
  • Footnote: C - CRATE REEL PUT-UP., U - TOPCOAT ADDERS ON STOCK SOLID COLORS. MINIMUM ORDER 10,000' PER COLOR COMBINATION. (SEE TOPCOAT ADDER TABLE)
