Description

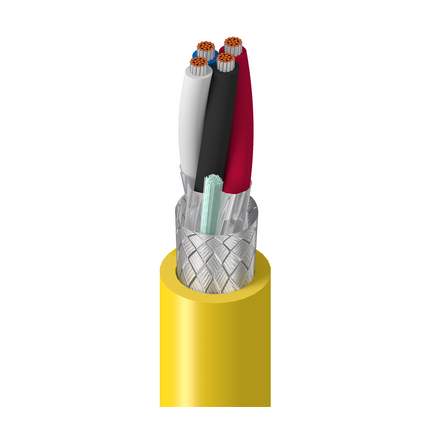

Belden 3083A 5602000 DeviceBus®, 2 Pr #15+18 Str TC, PVC+FPE Ins, IS+OA TC Brd, CPE Jkt, CMG PLTC
DeviceBus® for ODVA DeviceNet™, 2 Pair 15+18AWG (19x27+19x30) Tinned Copper, PVC+Foam PE Insulation, Individual Beldfoil® & OA Tinned Copper Braid(65%) Shield, CPE Outer Jacket, CMG PLTC
Ordering Details
- Manufacturer Part Number: 3083A 5602000
- Color: Yellow, Bright
- Length: 2,000 ft
- Put-Up: Reel
- UPC/EAN: 612825140863
- Manufacturer Footnote: C
Supplied as one 2,000 ft Reel.
Product Overview
- Suitable Applications: harsh environment, ODVA device-level communication, used with CIP (common Industrial Protocol) for control, configuration, and data collection between devices, such as sensors and actuators, and higher level devices such as PLC, and PC in industrial automation, bus topology, etc.
Construction Details
- Element: Power Pair(s); No. of Elements: 1; Size: 15 AWG; Stranding: 19x27; Material: TC - Tinned Copper
- Element: Data Pair(s); No. of Elements: 1; Size: 18 AWG; Stranding: 19x30; Material: TC - Tinned Copper
- Element: Power Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.021 in (0.53 mm); Nom. Insulation Diameter: 0.109 in (2.77 mm); Color Code: Red & Black
- Element: Data Pair(s); Material: PE - Polyethylene (Foam); Nom. Thickness: 0.053 in (1.3 mm); Nom. Insulation Diameter: 0.150 in (3.81 mm); Color Code: Blue & White; Notes: HDPE
- Element: Power Pair(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
- Element: Data Pair(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 65%; Drainwire Type: 18 AWG (19x30) TC
- Material: CPE - Chlorinated Polyethylene; Nom. Thickness: 0.058 in (1.5 mm); Nom. Diameter: 0.476 in (12.1 mm)
- Outer Jacket1 Table Notes: Jacket OD +/- 0.015
- Overall Cable Diameter (Nominal): 0.476 in (12.1 mm)
Electrical Characteristics
- Element: Power Pair(s); Nom. Conductor DCR: 3.58 Ohm/1000ft; Nom. Inner Shield DCR: 5.75 Ohm/1000ft (18.9 Ohm/km); Max. Current: 24 Amps per Conductor at 30ºC
- Element: Data Pair(s); Nom. Conductor DCR: 7.2 Ohm/1000ft (24 Ohm/km); Nom. Inner Shield DCR: 3.58 Ohm/1000ft (11.7 Ohm/km); Nom. Capacitance Cond-to-Cond: 12 pF/ft (39 pF/m); Nom. Characteristic Impedence: 120 Ohm; Nom. Velocity of Prop.: 75%; Max. Current: 14 Amps per Conductor at 30ºC
- Nom Outer Shield DCR: 7.29 Ohm/1000ft (23.9 Ohm/km)
- UL Voltage Rating: 300 V (CMG, PLTC-ER)
Mechanical Characteristics
- UL Temperature: 105°C; Operating: -20°C to +105°C
- Stationary Min.: 5.712 in (145.1 mm); Installation Min.: 5.712 in (145.1 mm)
- Max. Pull Tension: 192.6 lbs (87.36 kg)
- Bulk Cable Weight: 127 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, Burial
- Flammability / Reaction to Fire: UL 1685 FT4 Loading, IEEE 1202 FT4
- CPR Compliance: CPR Euroclass: Fca
- NEC / UL Compliance: Article 725, Article 800, CMG, PLTC
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Other Standard Compliance(s): ODVA Class 2 Thick
Product Notes
- Notes: Thick. Meter marks on jacket to aid users in installation. ODVA DeviceNet is an Open DeviceNet Vendor Association, Inc. trademark. Jacket printed ""1PR16"" instead of ""1PR15"" due to UL requirements for CMG Listing.
History
- Update and Revision: Revision Number: 0.564 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP.
