Belden 3082A T5U3000 DeviceBus®, 2 Pr #15+18 Str TC, PVC+FPE Ins, IS+OA TC Brd, PVC Jkt, CMG PLTC-ER - Gray T5U, 3,000 ft Reel

$29,164.99
SKU:
3082A T5U3000
Shipping:
Calculated at Checkout
Color:
Gray T5U
Length:
3,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
3082A
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

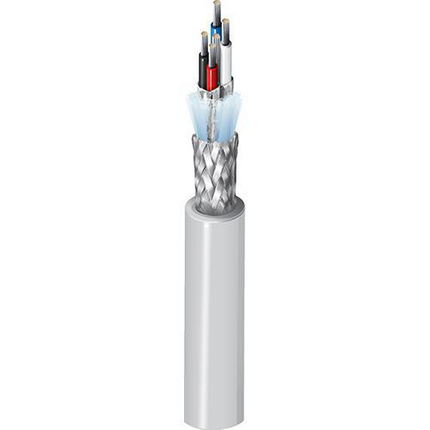

Belden 3082A T5U3000 DeviceBus®, 2 Pr #15+18 Str TC, PVC+FPE Ins, IS+OA TC Brd, PVC Jkt, CMG PLTC-ER

DeviceBus® for ODVA DeviceNet™, 2 Pair 15+18AWG (19x27+19x30) Tinned Copper, PVC+Foam PE Insulation, Individual Beldfoil® & OA Tinned Copper Braid(65%) Shield, PVC Outer Jacket, CMG PLTC-ER

Ordering Details

  • Manufacturer Part Number: 3082A T5U3000
  • Color: Gray T5U
  • Length: 3,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825140771

Supplied as one 3,000 ft Reel.

Product Overview

  • Suitable Applications: harsh environment, ODVA device-level communication, used with CIP (common Industrial Protocol) for control, configuration, and data collection between devices, such as sensors and actuators, and higher level devices such as PLC, and PC in industrial automation, bus topology, etc.

Construction Details

  • Element: Power Pair(s); No. of Elements: 1; Size: 15 AWG; Stranding: 19x27; Material: TC - Tinned Copper
  • Element: Data Pair(s); No. of Elements: 1; Size: 18 AWG; Stranding: 19x30; Material: TC - Tinned Copper
  • Element: Power Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.021 in (0.53 mm); Nom. Insulation Diameter: 0.109 in (2.77 mm); Color Code: Red & Black
  • Element: Data Pair(s); Material: PE - Polyethylene (Foam); Nom. Thickness: 0.053 in (1.3 mm); Nom. Insulation Diameter: 0.150 in (3.81 mm); Color Code: Blue & White; Notes: HDPE
  • Element: Power Pair(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
  • Element: Data Pair(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
  • Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 65%; Drainwire Type: 18 AWG (19x30) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.060 in (1.5 mm); Nom. Diameter: 0.480 in (12.2 mm)
  • Outer Jacket1 Table Notes: Jacket OD +/- 0.010
  • Overall Cable Diameter (Nominal): 0.480 in (12.2 mm)

Electrical Characteristics

  • Element: Power Pair(s); Nom. Conductor DCR: 3.58 Ohm/1000ft; Nom. Inner Shield DCR: 5.75 Ohm/1000ft (18.9 Ohm/km); Nom. Inductance: 0.174 µH/ft (0.571 µH/m); Max. Current: 16 Amps per Conductor at 30ºC
  • Element: Data Pair(s); Nom. Conductor DCR: 7.2 Ohm/1000ft (24 Ohm/km); Nom. Inner Shield DCR: 3.58 Ohm/1000ft (11.7 Ohm/km); Nom. Capacitance Cond-to-Cond: 12 pF/ft (39 pF/m); Nom. Characteristic Impedence: 120 Ohm; Nom. Delay: 1.36 ns/ft; Nom. Velocity of Prop.: 75%; Max. Current: 14 Amps per Conductor at 30ºC
  • Nom Outer Shield DCR: 7.29 Ohm/1000ft (23.9 Ohm/km)
  • UL Voltage Rating: 300 V (CMG, PLTC-ER), 600 V (AWM 20201); Voltage Rating: 300 V (AWM I/II A)

Mechanical Characteristics

  • UL Temperature: 60°C; Operating: -20°C to +60°C
  • Stationary Min.: 5.76 in (146 mm); Installation Min.: 5.76 in (146 mm)
  • Max. Pull Tension: 192.6 lbs (87.36 kg)
  • Bulk Cable Weight: 128 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, Oil Resistance
  • Flammability / Reaction to Fire: UL 1685 FT4 Loading, IEEE 1202 FT4, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 725, Article 800, CMG, PLTC
  • AWM Compliance: AWM 20201, AWM I/II A
  • CEC / C(UL) Compliance: CMG
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Other Standard Compliance(s): ODVA Class 2 Thick

Product Notes

  • Notes: Thick. Meter marks on jacket to aid users in installation. ODVA DeviceNet is an Open DeviceNet Vendor Associatio, Inc. Trademark. Jacket printed ""1PR16"" instead of ""1PR15"" due to UL requirements for CMG Listing.

History

  • Update and Revision: Revision Number: 0.607 Revision Date: 02-20-2026
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 3082A Product Information
