Description
Belden 30804 010250 Lead Wire, #4 Str TC, Silicone Ins, Fiber Glass Jkt, AWM 3125
Rubber Lead Wire, 4AWG (105x24) Tinned Copper, Silicone Insulation, Fiber Glass Outer Jacket, AWM 3125 CSA SEW-2 600V 200C
Ordering Details
- Manufacturer Part Number: 30804 010250
- Color: Black
- Length: 250 ft
- Put-Up: Reel
- UPC/EAN: 612825140566
- Manufacturer Footnote: C F
Supplied as one 250 ft Reel.

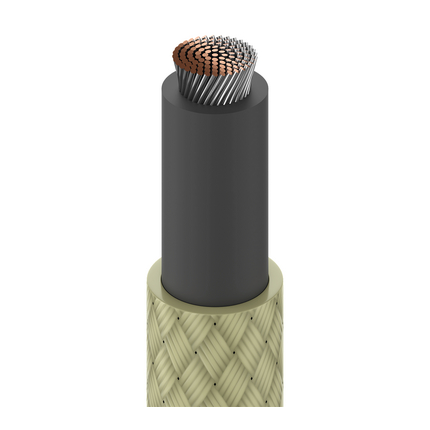

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Class 130(B), 155(F)or 180(H) insulation systems, internal wiring of lighting fixtures and appliances, high temperature applications
Construction Details
- Element: Conductor(s); No. of Elements: 1; Size: 4 AWG; Stranding: 105x24; Material: TC - Tinned Copper
- Material: Silicone Rubber; Nom. Thickness: 0.063 in (1.6 mm); Nom. Insulation Diameter: 0.390 in (9.91 mm)
- Material: Lacquered Glass Braid Covering; Nom. Diameter: 0.424 in (10.8 mm)
- Overall Cable Diameter (Nominal): 0.424 in (10.8 mm)
Electrical Characteristics
- Nom. Conductor DCR: 0.279 Ohm/1000ft; Max. Current: 200 Amps per Conductor at 30ºC
- UL Voltage Rating: 600 V (AWM 3125); Voltage Rating: 600 V (CSA SEW-2)
Mechanical Characteristics
- UL Temperature: 200°C; Operating: -70°C To +200°C
- Stationary Min.: 4.24 in (108 mm); Installation Min.: 4.24 in (108 mm)
- Max. Pull Tension: 532 lbs (241 kg)
- Bulk Cable Weight: 189 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor, Outdoor
- Sustainability: CA Prop 65
- AWM Compliance: AWM 3125
- CEC / C(UL) Compliance: SEW-2
- European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.493 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP., F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.
