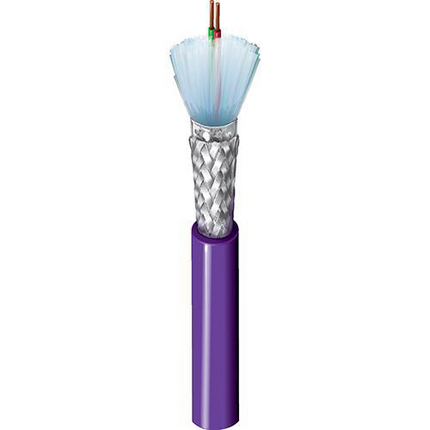

Belden 3079A 0071000 Profibus, 1 Pr #22 Sol BC, PE Ins, OS+TC Brd, PVC Jkt, PLTC CMG Profibus DP
Profibus, 1 Pair 22AWG (Solid) Bare Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(65%) Shield, PVC Outer Jacket, PLTC CMG AWM 20201 SUN RES Profibus DP
Ordering Details
- Manufacturer Part Number: 3079A 0071000
- Color: Violet
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825140344
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.
Product Overview
- Suitable Applications: harsh environment, outdoors, data transmission applications such as Profibus DP or PA, Instrumentation and computer cable, etc. exposure to temperature extremes, humidity/moisture, dust, and oil.
Construction Details
- Element: Pair(s); No. of Elements: 1; Size: 22 AWG; Stranding: Solid; Material: BC - Bare Copper
- Element: Pair(s); Material: PE - Polyethylene (Foam); Nom. Thickness: 0.035 in (0.89 mm); Nom. Insulation Diameter: 0.099 in (2.5 mm); Color Code: Red & Green; Notes: Flame Retardant, Foam w/ skin
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 65%
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.043 in (1.1 mm); Nom. Diameter: 0.315 in (8.00 mm)
- Outer Jacket1 Table Notes: Jacket OD +/- 0.010
- Overall Cable Diameter (Nominal): 0.315 in (8.00 mm)
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 18.9 Ohm/1000ft (62.0 Ohm/km); Nom. Characteristic Impedence: 150 Ohm; Nom. Inductance: 0.282 µH/ft (0.925 µH/m); Nom. Velocity of Prop.: 78%; Max. Current: 2.3 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 5.2 Ohm/1000ft (17 Ohm/km)
- Element: Pair(s); Frequency [MHz]: 0.2; Nom. Insertion Loss (Attenuation) [dB/100ft]: 0.27
- Frequency [MHz]: 4; Nom. Insertion Loss (Attenuation) [dB/100ft]: 0.67
- Frequency [MHz]: 16; Nom. Insertion Loss (Attenuation) [dB/100ft]: 1.37
- UL Voltage Rating: 300 V (CMG, PLTC), 600 V (AWM 20201)
Mechanical Characteristics
- UL Temperature: 75°C; Operating: -30°C to +75°C
- Stationary Min.: 2.4 in (61 mm); Installation Min.: 2.4 in (61 mm)
- Max. Pull Tension: 50 lbs (23 kg)
- Bulk Cable Weight: 52 lbs/1000ft (77 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor, Outdoor, Sunlight Resistance
- Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEEE 1202, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
- NEC / UL Compliance: Article 725, Article 800, CM, CMX-Outdoor, PLTC, ITC
- AWM Compliance: AWM 20201
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
Product Notes
- Notes: Siemens Sinec L2 Cable. For CPE jacketed version order Part No. YR45047. For LSZH (FRNC) jacketed version, order Part No. 3079T or YR44731.
History
- Update and Revision: Revision Number: 0.658 Revision Date: 02-26-2026
- Footnote: C - CRATE REEL PUT-UP.
