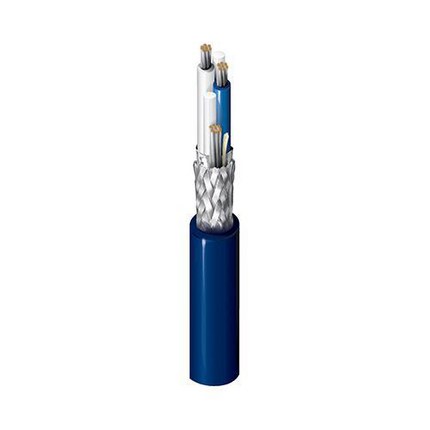

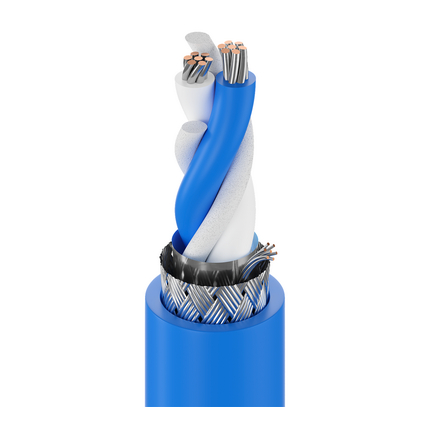

Belden 3072F C55500 Blue Hose®, 1 Pr #18 Str TC, PP Ins, OS+TC Brd, PVC Jkt, 600V TC, PLTC
Blue Hose® for Data Highway Plus, 1 Pair 18AWG (7x26) Tinned Copper, PP Insulation, Overall Beldfoil®+Tinned Copper Braid(55%) Shield, PVC Outer Jacket, 600V TC, PLTC
Ordering Details
- Manufacturer Part Number: 3072F C55500
- Color: Blue, Cairo
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825140092
- Manufacturer Footnote: C N
Supplied as one 500 ft Reel.
Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.
Construction Details
- Element: Pair(s); No. of Elements: 1; Size: 18 AWG; Stranding: 7x26; Material: TC - Tinned Copper
- Element: Pair(s); Material: PP - Polypropylene; Nom. Thickness: 0.025 in (0.64 mm); Nom. Insulation Diameter: 0.096 in (2.4 mm); Color Code: Blue & White; Notes: Flame Retardant
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 20 AWG (7x28) TC
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 55%
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.053 in (1.3 mm); Nom. Diameter: 0.324 in (8.23 mm)
- Outer Jacket1 Table Notes: Jacket OD +/- 0.006
- Overall Cable Diameter (Nominal): 0.324 in (8.23 mm)
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 7.2 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 19.5 pF/ft (64.0 pF/m); Nom. Characteristic Impedence: 78 Ohm; Nom. Delay: 1.58 ns/ft; Nom. Inductance: 0.12 µH/ft (0.39 µH/m); Nom. Velocity of Prop.: 65%; Max. Current: 5.2 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 2.1 Ohm/1000ft (6.9 Ohm/km)
- Element: Pair(s); Frequency [MHz]: 1; Nom. Insertion Loss (Attenuation): 0.52 dB/100ft
- Frequency [MHz]: 10; Nom. Insertion Loss (Attenuation): 1.98 dB/100ft
- Frequency [MHz]: 50; Nom. Insertion Loss (Attenuation): 3.78 dB/100ft
- Frequency [MHz]: 100; Nom. Insertion Loss (Attenuation): 5.35 dB/100ft
- Frequency [MHz]: 200; Nom. Insertion Loss (Attenuation): 7.57 dB/100ft
- Frequency [MHz]: 400; Nom. Insertion Loss (Attenuation): 10.7 dB/100ft
- UL Voltage Rating: 600 V (TC), 300 V (CMG, PLTC); Voltage Rating: 150 V (ITC)
Mechanical Characteristics
- UL Temperature: 75°C; Operating: -40°C to +75°C
- Stationary Min.: 3 in (76 mm); Installation Min.: 4 in (100 mm)
- Max. Pull Tension: 85 lbs (39 kg)
- Bulk Cable Weight: 64 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor, Outdoor, Sunlight Resistance
- Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEEE 1202
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 336, Article 725, Article 727, Article 800, TC
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Other Standard Compliance(s): P-MSHA-SC-182/7
Product Notes
- Notes: For CPE jacketed version, order Part No. YM45044.
History
- Update and Revision: Revision Number: 0.577 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP., N - FINAL PUT-UP LENGTH MAY VARY -0% TO +10% FROM LENGTH SHOWN.
