Description
Belden 2183P 0101000 4K UHD Media Cable, 4 Pr #23, F/UTP Flamarrest® Jacket, CMP
4 Pair 23 AWG Solid Bare Copper Conductors, FEP Insulation, F/UTP, Helical TC Drain, Ripcord, Flamarrest® Jacket, Plenum CMP-LP (0.6A)
Ordering Details
- Manufacturer Part Number: 2183P 0101000
- Color: Black
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825391678
Supplied as one 1,000 ft Reel.

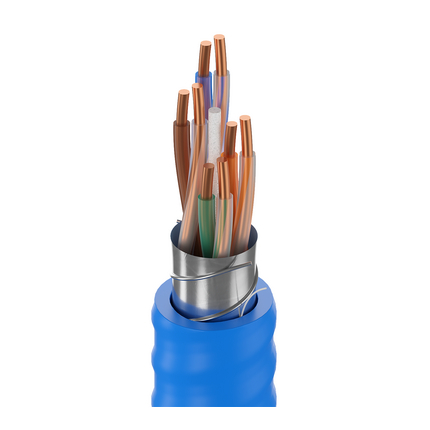

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: HDBaseT, Full 5-Play, 4K (UHD/DCI), POH, POE
Construction Details
- Size: 23 AWG; Stranding: Solid; Material: BC - Bare Copper
- Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.010 in (0.25 mm); Color Code: Western Electric (Modified)
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 26 AWG (Solid) TC; Notes: Two drain wires applied helically for added flexibility
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.018 in (0.46 mm); Nom. Diameter: 0.270 in; Ripcord: Yes
- Overall Cable Diameter (Nominal): 0.270 in
Electrical Characteristics
- Nom. Conductor DCR: 22.7 Ohm/1000ft; Max. Capacitance Unbalance: 330 pF/100m; Nom. Velocity of Prop.: 72%; Max. Current: 3.1 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 5.87 Ohm/1000ft (19.3 Ohm/km)
- Frequency: 1 MHz; Nom. Insertion Loss (Attenuation) [dB/100m]: 2
- Frequency: 4 MHz; Nom. Insertion Loss (Attenuation) [dB/100m]: 3.8
- Frequency: 8 MHz; Nom. Insertion Loss (Attenuation) [dB/100m]: 4.3
- Frequency: 10 MHz; Nom. Insertion Loss (Attenuation) [dB/100m]: 5.9
- Frequency: 16 MHz; Nom. Insertion Loss (Attenuation) [dB/100m]: 7.5
- Frequency: 20 MHz; Nom. Insertion Loss (Attenuation) [dB/100m]: 8.3
- Frequency: 25 MHz; Nom. Insertion Loss (Attenuation) [dB/100m]: 9.3
- Frequency: 31.2 MHz; Nom. Insertion Loss (Attenuation) [dB/100m]: 10.4
- Frequency: 62.5 MHz; Nom. Insertion Loss (Attenuation) [dB/100m]: 14.8
- Frequency: 100 MHz; Nom. Insertion Loss (Attenuation) [dB/100m]: 18.8
- Frequency: 125 MHz; Nom. Insertion Loss (Attenuation) [dB/100m]: 21
- Frequency: 155 MHz; Nom. Insertion Loss (Attenuation) [dB/100m]: 23
- Frequency: 175 MHz; Nom. Insertion Loss (Attenuation) [dB/100m]: 24.9
- UL Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 90°C; Operating: -20°C to +90°C; Installation: 0°C To +75°C; Storage: -20°C to +75°C
- Stationary Min.: 2.7 in (69 mm); Installation Min.: 2.7 in
- Max. Pull Tension: 45 lbs (20 kg)
- Bulk Cable Weight: 36 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor - Plenum, Indoor, Outdoor
- Flammability / Reaction to Fire: NFPA 262 (UL 910), FT6
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CMP-LP (0.6A), CL3P
- CEC / C(UL) Compliance: CMP
- IEEE Compliance: POE per 802.3af & POE+ 802.3at-2009
- ISO/IEC Compliance: 11801 ed 2.2 (2011) Class D
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2017-07-10
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Non-Plenum Number: 2183R
Product Notes
- Notes: Values Above 100 MHz are for Engineering Information Only. Print Includes Descending Footage Markings.
History
- Update and Revision: Revision Number: 0.414 Revision Date: 09-07-2025
