Belden 2127A 0065000 Fieldbus, 1 Pr #16 Str TC, XLPE Ins, OS, TPE Jkt, 600V TC - Blue, Light, 5,000 ft Reel

$18,438.99
SKU:
2127A 0065000
Shipping:
Calculated at Checkout
Color:
Blue, Light
Length:
5,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
2127A
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 2127A 0065000 Fieldbus, 1 Pr #16 Str TC, XLPE Ins, OS, TPE Jkt, 600V TC

Fieldbus, 1 Pair 16AWG (7x24) Tinned Copper, XLPE Insulation, Overall Beldfoil® Shield, TPE Outer Jacket, 600V TC

Ordering Details

  • Manufacturer Part Number: 2127A 0065000
  • Color: Blue, Light
  • Length: 5,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825129950

Supplied as one 5,000 ft Reel.

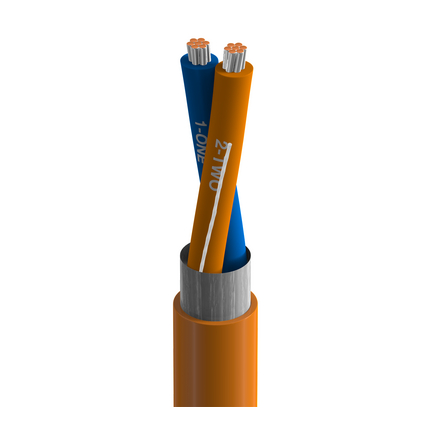

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: harsh environment digital and serial two-way communication, oil and gas extraction and refining sites, petrochemical, Profibus process automation or Foundation FieldBus process automation, extreme temperature environments, exposure to humidity/moisture, dust, and oil, remote locations long distance applications, etc.

Construction Details

  • Element: Pair(s); No. of Elements: 1; Size: 16 AWG; Stranding: 7x24; Material: TC - Tinned Copper
  • Element: Pair(s); Material: XLPE - Cross-Linked Polyethylene (Thermoset); Nom. Thickness: 0.038 in (0.97 mm); Nom. Insulation Diameter: 0.135 in (3.43 mm); Color Code: Blue, Orange and Numbered
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 18 AWG (7x26) TC
  • Separator: Polyester Tape; Material: TPE - Thermoplastic Elastomer; Nom. Thickness: 0.047 in (1.2 mm); Nom. Diameter: 0.374 in (9.50 mm); Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.374 in (9.50 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 4.5 Ohm/1000ft; Nom. Capacitance Cond-to-Shield: 22 pF/ft (72 pF/m); Max. Capacitance Unbalance: 1.2 pF/ft; Nom. Characteristic Impedence: 100 Ohm; Nom. Inductance: 0.22 µH/ft (0.72 µH/m); Nom. Velocity of Prop.: 64%; Max. Current: 11.6 Amps per Conductor at 25ºC
  • Nom Outer Shield DCR: 5.1 Ohm/1000ft (17 Ohm/km)
  • Element: Pair(s); Frequency [MHz]: 0.039; Nom. Insertion Loss (Attenuation): 0.065 dB/100ft
  • UL Voltage Rating: 600 V

Mechanical Characteristics

  • UL Temperature: 90°C; Operating: -40°C to +90°C Wet/Dry
  • Temperature Table Notes: -40C
  • Stationary Min.: 3.75 in (95.3 mm); Installation Min.: 3.75 in (95.3 mm)
  • Max. Pull Tension: 93 lbs (42 kg)
  • Bulk Cable Weight: 67 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Burial
  • Flammability / Reaction to Fire: UL 1581 Vertical Tray, FT4, IEEE 1202, IEC 60332-3-24
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 336, ITC, PLTC
  • AWM Compliance: AWM I/II A/B
  • CEC / C(UL) Compliance: CIC, TC
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • Other Standard Compliance(s): ISA/SP-50 Type A

History

  • Update and Revision: Revision Number: 0.563 Revision Date: 02-20-2026

Resources

Belden 2127A Product Information
