Belden 2126A 0031000 Fieldbus, 50 Pr #18 Str TC, XLPO Ins, IS/OS, TPE Jkt, 600V TC-ER - Orange, 1,000 ft Reel

$108,608.99
SKU:
2126A 0031000
Shipping:
Calculated at Checkout
Color:
Orange
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
2126A
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 2126A 0031000 Fieldbus, 50 Pr #18 Str TC, XLPO Ins, IS/OS, TPE Jkt, 600V TC-ER

Fieldbus, 50 Pair 18AWG (7x26) Tinned Copper, XLPO Insulation, Individual & Overall Beldfoil® Shield, TPE Outer Jacket, 600V TC-ER

Ordering Details

  • Manufacturer Part Number: 2126A 0031000
  • Color: Orange
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825129899

Supplied as one 1,000 ft Reel.

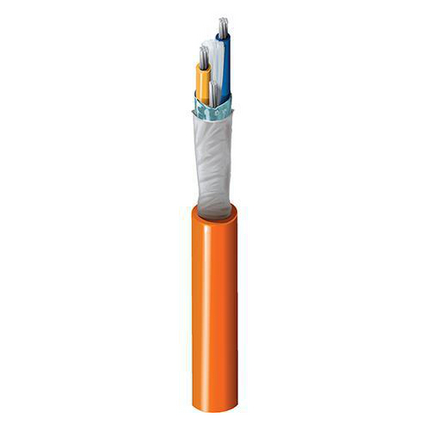

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: harsh environment digital and serial two-way communication, oil and gas extraction and refining sites, petrochemical, Profibus process automation or Foundation FieldBus process automation, extreme temperature environments, exposure to humidity/moisture, dust, and oil, remote locations long distance applications, etc.

Construction Details

  • Element: Pair(s); No. of Elements: 50; Size: 18; Stranding: 7x26; Material: TC - Tinned Copper
  • Material: XLPE - Cross-Linked Polyethylene (Thermoset); Nom. Thickness: 0.032 in (0.81 mm); Color Code: Blue, Orange and Numbered
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
  • Element: Data Pair(s)
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
  • Material: TPE - Thermoplastic Elastomer; Nom. Thickness: 0.12 in (3.0 mm); Nom. Diameter: 1.947 in

Electrical Characteristics

  • Nom. Conductor DCR: 5.86 Ohm/1000ft (19.2 Ohm/km); Nom. Capacitance Cond-to-Cond: 22 pF/ft (72 pF/m); Nom. Characteristic Impedence: 100 Ohm; Nom. Inductance: 0.22 µH/ft (0.72 µH/m); Nom. Velocity of Prop.: 64%; Max. Current: 5.4 Amps per Conductor
  • Frequency [MHz]: 0.039; Nom. Insertion Loss (Attenuation) [dB/100ft]: 0.08
  • UL Voltage Rating: 600 V

Mechanical Characteristics

  • UL Temperature: 90°C; Operating: -40°C to 90°C
  • Max. Pull Tension: 2892 lbs (1312 kg)
  • Bulk Cable Weight: 1782 lbs/1000ft (2652 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Burial
  • Flammability / Reaction to Fire: UL1581 Vertical Tray, IEC 60332-3-24
  • NEC / UL Compliance: Article 336, TC-ER
  • AWM Compliance: AWM I A/B II A/B
  • CEC / C(UL) Compliance: CIC, TC
  • ISO/IEC Compliance: IEC 61158-2
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Other Standard Compliance(s): ISA/SP-50 Type A

History

  • Update and Revision: Revision Number: 0.165 Revision Date: 02-20-2026

Resources

Belden 2126A Product Information
