Belden 2120A 0065000 Fieldbus, 5 Pr #18 Str TC, XLPO Ins, IS/OS, TPE Jkt, 600V TC-ER - Blue, Light, 5,000 ft Reel

$66,956.99
SKU:
2120A 0065000
Shipping:
Calculated at Checkout
Color:
Blue, Light
Length:
5,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
2120A
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 2120A 0065000 Fieldbus, 5 Pr #18 Str TC, XLPO Ins, IS/OS, TPE Jkt, 600V TC-ER

Fieldbus, 5 Pair 18AWG (7x26) Tinned Copper, XLPO Insulation, Individual & Overall Beldfoil® Shield, TPE Outer Jacket, 600V TC-ER

Ordering Details

  • Manufacturer Part Number: 2120A 0065000
  • Color: Blue, Light
  • Length: 5,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825129608

Supplied as one 5,000 ft Reel.

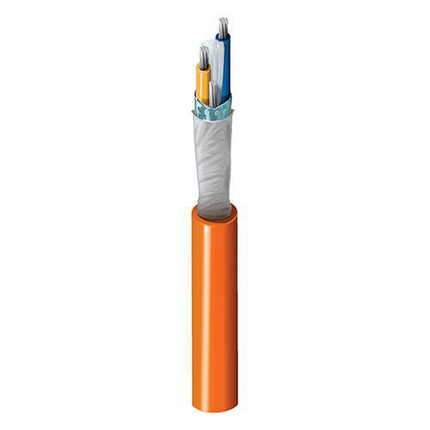

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: harsh environment digital and serial two-way communication, oil and gas extraction and refining sites, petrochemical, Profibus process automation or Foundation FieldBus process automation, extreme temperature environments, exposure to humidity/moisture, dust, and oil, remote locations long distance applications, etc.

Construction Details

  • Element: Pair(s); No. of Elements: 5; Size: 18; Stranding: 7x26; Material: TC - Tinned Copper
  • Material: XLPE - Cross-Linked Polyethylene (Thermoset); Nom. Thickness: 0.038 in (0.97 mm); Color Code: Blue, Orange and Numbered
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
  • Material: TPE - Thermoplastic Elastomer; Nom. Thickness: 0.063 in (1.6 mm); Nom. Diameter: 0.677 in; Ripcord: Yes

Electrical Characteristics

  • Nom. Conductor DCR: 5.86 Ohm/1000ft (19.2 Ohm/km); Nom. Capacitance Cond-to-Cond: 22 pF/ft (72 pF/m); Max. Capacitance Unbalance: 1.2 pF/ft; Nom. Characteristic Impedence: 100 Ohm; Nom. Inductance: 0.22 µH/ft (0.72 µH/m); Nom. Velocity of Prop.: 64%; Max. Current: 7.6 Amps per Conductor
  • Frequency [MHz]: 0.039; Nom. Insertion Loss (Attenuation) [dB/100ft]: 0.08
  • UL Voltage Rating: 600 V

Mechanical Characteristics

  • UL Temperature: 90°C; Operating: -40°C to 90°C
  • Max. Pull Tension: 309 lbs (140 kg)
  • Bulk Cable Weight: 218 lbs/1000ft (324 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Oil Resistance, Burial
  • Flammability / Reaction to Fire: UL1581 Vertical Tray, IEC 60332-3-24
  • NEC / UL Compliance: Article 336, TC-ER
  • AWM Compliance: AWM I A/B II A/B
  • CEC / C(UL) Compliance: CIC, TC
  • ISO/IEC Compliance: IEC 61158-2
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Other Standard Compliance(s): ISA/SP-50 Type A

History

  • Update and Revision: Revision Number: 0.588 Revision Date: 09-07-2025
