Belden 2115A 0031000 Fieldbus, 20 Pr #16 Str TC, XLPO Ins, IS/OS, TPE Jkt, CMG - Orange, 1,000 ft Reel

$56,578.99
SKU:
2115A 0031000
Shipping:
Calculated at Checkout
Color:
Orange
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
2115A
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 2115A 0031000 Fieldbus, 20 Pr #16 Str TC, XLPO Ins, IS/OS, TPE Jkt, CMG

Fieldbus, 20 Pair 16AWG (7x24H) Tinned Copper, XLPO Insulation, Individual & Overall Beldfoil® Shield, TPE Outer Jacket, CMG

Ordering Details

  • Manufacturer Part Number: 2115A 0031000
  • Color: Orange
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825129394

Supplied as one 1,000 ft Reel.

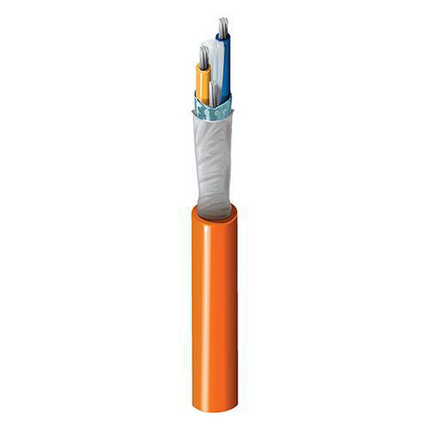

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: harsh environment digital and serial two-way communication, oil and gas extraction and refining sites, petrochemical, Profibus process automation or Foundation FieldBus process automation, extreme temperature environments, exposure to humidity/moisture, dust, and oil, remote locations long distance applications, etc.

Construction Details

  • Element: Pair(s); No. of Elements: 20; Size: 16; Stranding: 7x24; Material: TC - Tinned Copper
  • Material: XLPE - Cross-Linked Polyethylene (Thermoset); Nom. Thickness: 0.038 in (0.97 mm); Color Code: Blue, Orange and Numbered
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
  • Element: Data Pair(s)
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
  • Material: TPE - Thermoplastic Elastomer; Nom. Thickness: 0.085 in (2.2 mm); Nom. Diameter: 1.469 in (37.31 mm)

Electrical Characteristics

  • Nom. Conductor DCR: 4.2 Ohm/1000ft (14 Ohm/km); Nom. Capacitance Cond-to-Cond: 22 pF/ft (72 pF/m); Nom. Characteristic Impedence: 100 Ohm; Nom. Inductance: 0.22 µH/ft (0.72 µH/m); Nom. Velocity of Prop.: 64%; Max. Current: 7.2 Amps per Conductor
  • Frequency [MHz]: 0.039; Nom. Insertion Loss (Attenuation): 0.065 dB/100ft
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 90°C; Operating: -40°C to 90°C
  • Max. Pull Tension: 1911 lbs (866.8 kg)
  • Bulk Cable Weight: 1037 lbs/1000ft (1543 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Burial
  • Flammability / Reaction to Fire: UL1685 UL Loading, IEC 60332-3-24
  • NEC / UL Compliance: Article 725, Article 727, Article 800, CMG, ITC, PLTC
  • AWM Compliance: AWM I A/B II A/B
  • CEC / C(UL) Compliance: CIC, TC
  • ISO/IEC Compliance: IEC 61158-2
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Other Standard Compliance(s): ISA/SP-50 Type A

History

  • Update and Revision: Revision Number: 0.182 Revision Date: 10-30-2026

Resources

Belden 2115A Product Information
