Belden 2113A 0035000 Fieldbus, 12 Pr #16 Str TC, XLPO Ins, IS/OS, TPE Jkt, CMG - Orange, 5,000 ft Reel

$193,211.99
SKU:
2113A 0035000
Shipping:
Calculated at Checkout
Color:
Orange
Length:
5,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
2113A
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 2113A 0035000 Fieldbus, 12 Pr #16 Str TC, XLPO Ins, IS/OS, TPE Jkt, CMG

Fieldbus, 12 Pair 16AWG (7x24H) Tinned Copper, XLPO Insulation, Individual & Overall Beldfoil® Shield, TPE Outer Jacket, CMG

Ordering Details

  • Manufacturer Part Number: 2113A 0035000
  • Color: Orange
  • Length: 5,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825129349

Supplied as one 5,000 ft Reel.

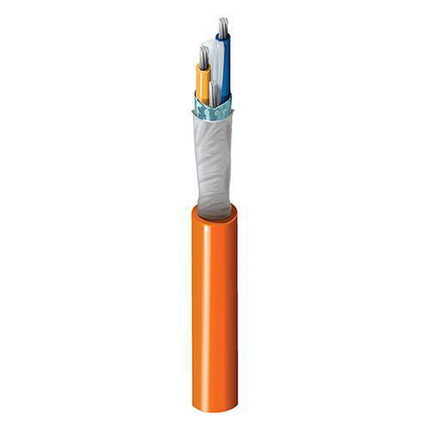

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: harsh environment digital and serial two-way communication, oil and gas extraction and refining sites, petrochemical, Profibus process automation or Foundation FieldBus process automation, extreme temperature environments, exposure to humidity/moisture, dust, and oil, remote locations long distance applications, etc.

Construction Details

  • Element: Pair(s); No. of Elements: 12; Size: 16; Stranding: 7x24; Material: TC - Tinned Copper
  • Material: XLPE - Cross-Linked Polyethylene (Thermoset); Nom. Thickness: 0.038 in (0.97 mm); Color Code: Blue, Orange and Numbered
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
  • Material: TPE - Thermoplastic Elastomer; Nom. Thickness: 0.085 in (2.2 mm); Nom. Diameter: 1.186 in (30.12 mm); Ripcord: Yes

Electrical Characteristics

  • Nom. Conductor DCR: 4.2 Ohm/1000ft (14 Ohm/km); Nom. Capacitance Cond-to-Cond: 22 pF/ft (72 pF/m); Max. Capacitance Unbalance: 1.2 pF/ft; Nom. Characteristic Impedence: 100 Ohm; Nom. Inductance: 0.22 µH/ft (0.72 µH/m); Nom. Velocity of Prop.: 64%; Max. Current: 7.2 Amps per Conductor
  • Frequency [MHz]: 0.039; Nom. Insertion Loss (Attenuation): 0.065 dB/100ft
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 90°C; Operating: -40°C to 90°C
  • Max. Pull Tension: 1161 lbs (526.6 kg)
  • Bulk Cable Weight: 666 lbs/1000ft (991 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Oil Resistance, Burial
  • Flammability / Reaction to Fire: UL1685 UL Loading, IEC 60332-3-24
  • NEC / UL Compliance: Article 725, Article 727, Article 800, CMG, ITC, PLTC
  • AWM Compliance: AWM I A/B II A/B
  • CEC / C(UL) Compliance: CIC, TC
  • ISO/IEC Compliance: IEC 61158-2
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Other Standard Compliance(s): ISA/SP-50 Type A

History

  • Update and Revision: Revision Number: 0.564 Revision Date: 10-30-2026

Resources

Belden 2113A Product Information
