Belden 19405 0101000 Portable Cordage, 2 C #18 Str BC, CPE Ins, UL Type HPN - Black, 1,000 ft Reel

$2,757.99
SKU:
19405 0101000
Shipping:
Calculated at Checkout
Color:
Black
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
19405
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 19405 0101000 Portable Cordage, 2 C #18 Str BC, CPE Ins, UL Type HPN

Portable Cordage, 2 Conductor 18AWG (41x34) Bare Copper, CPE Insulation, UL Type HPN

Ordering Details

  • Manufacturer Part Number: 19405 0101000
  • Color: Black
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825127062
  • Manufacturer Footnote: C F

Supplied as one 1,000 ft Reel.

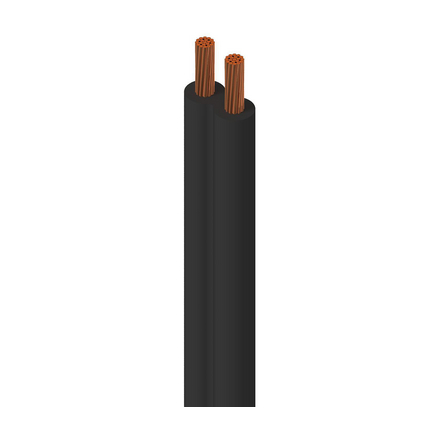

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Construction Details

  • Size: 18; Stranding: 41x34; Material: BC - Bare Copper
  • Material: CPE - Chlorinated Polyethylene; Nom. Thickness: 0.047 in (1.2 mm)
  • Material: No Shield
  • Nom. Diameter: 0.14 x 0.276 in

Electrical Characteristics

  • Max. Current: 10 Amps per Conductor at 25ºC (7 Amps over 50 ft)
  • Max. Current: 7 Amps per Conductor at 25ºC (over 50 ft)
  • UL Voltage Rating: 300 V RMS

Mechanical Characteristics

  • Operating: -30°C To +90
  • Bulk Cable Weight: 28 lbs/1000ft (42 kg/km)

Standards and Compliance

  • Flammability / Reaction to Fire: VW-1
  • NEC / UL Compliance: HPN
  • AWM Compliance: HPN
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

History

  • Update and Revision: Revision Number: 0.387 Revision Date: 11-06-2026
  • Footnote: C - CRATE REEL PUT-UP., F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.
