Description
Belden 19228 010250 Portable Cordage, 2 C #16 Str BC, EPDM Ins, CPE Jkt, UL Type SJO
Portable Cordage, 2 Conductor 16AWG (26x30) Bare Copper, EPDM Insulation, CPE Outer Jacket, UL Type SJO
Ordering Details
- Manufacturer Part Number: 19228 010250
- Color: Black
- Length: 250 ft
- Put-Up: Reel
- UPC/EAN: 612825126867
- Manufacturer Footnote: C F
Supplied as one 250 ft Reel.

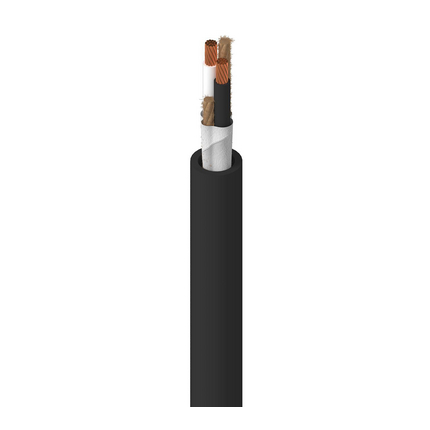

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Construction Details
- Element: Conductor(s); No. of Elements: 2; Size: 16 AWG; Stranding: 26x30; Material: BC - Bare Copper
- Material: EPDM - Ethylene Propylene Diene Monomer; Nom. Thickness: 0.031 in (0.79 mm); Nom. Insulation Diameter: 0.123 in (3.12 mm); Color Code: Black, White
- Separator: Paper Tape; Material: CPE - Chlorinated Polyethylene (Thermoset); Nom. Thickness: 0.035 in (0.89 mm); Nom. Diameter: 0.315 in
Electrical Characteristics
- Nom. Conductor DCR: 4.4 Ohm/1000ft; Max. Current: 13 Amps per Conductor at 25ºC (10 Amps over 50 ft)
- Max. Current: 10 Amps per Conductor at 25ºC (over 50 ft)
- UL Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 90°C
- Max. Pull Tension: 70.2 lbs (31.8 kg)
- Bulk Cable Weight: 54 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Oil Resistance
- NEC / UL Compliance: Article 400, SJO
- AWM Compliance: SJO
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.387 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP., F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.
