Description
Belden 19216 010200 Portable Cordage, 4 C #12 Str BC, EPDM Ins, CPE Jkt, UL Type SO
Portable Cordage, 4 Conductor 12AWG (65x30) Bare Copper, EPDM Insulation, CPE Outer Jacket, UL Type SO
Ordering Details
- Manufacturer Part Number: 19216 010200
- Color: Black
- Length: 200 ft
- Put-Up: Reel
- UPC/EAN: 612825126829
- Manufacturer Footnote: C
Supplied as one 200 ft Reel.

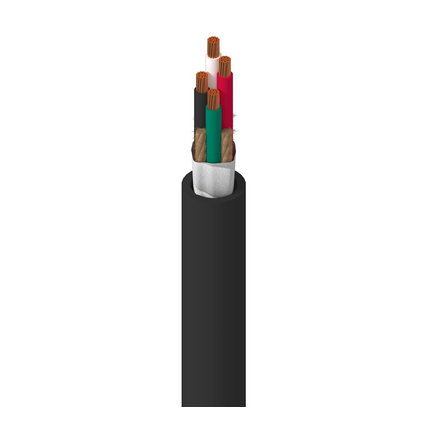

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Construction Details
- Element: Conductor(s); No. of Elements: 4; Size: 12 AWG; Stranding: 65x30; Material: BC - Bare Copper
- Element: Conductor(s); Material: EPDM - Ethylene Propylene Diene Monomer; Nom. Thickness: 0.052 in (1.3 mm); Nom. Insulation Diameter: 0.201 in (5.11 mm); Color Code: Black, White, Green, Red
- Material: No Shield
- Separator: Paper Tape; Material: CPE - Chlorinated Polyethylene (Thermoset); Nom. Thickness: 0.102 in (2.59 mm); Nom. Diameter: 0.69 in
- Overall Cable Diameter (Nominal): 0.69 in
Electrical Characteristics
- Nom. Conductor DCR: 1.7 Ohm/1000ft; Max. Current: 20 Amps per Conductor at 25ºC (15 Amps over 50 ft)
- UL Voltage Rating: 600 V
Mechanical Characteristics
- UL Temperature: 90°C; Operating: -20°C To +90°C
- Stationary Min.: 6.9 in (180 mm); Installation Min.: 6.9 in
- Max. Pull Tension: 338 lbs (153 kg)
- Bulk Cable Weight: 284 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor, Oil Resistance
- NEC / UL Compliance: Article 400, SO
- AWM Compliance: SO
- CEC / C(UL) Compliance: LL7874
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.387 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
