Description
Belden 1912A B591000 Audio Snake Cable, #24-12pr, BC, Indiv. Shielded
Audio Snake Cable, 12-24 AWG bare copper pairs, polyolefin insulation, individually shielded with double serve "French Braid", drain, numbered/color-coded PVC jackets, flexible PVC jacket
Ordering Details
- Manufacturer Part Number: 1912A B591000
- Color: Black, Matte
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825126539
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.

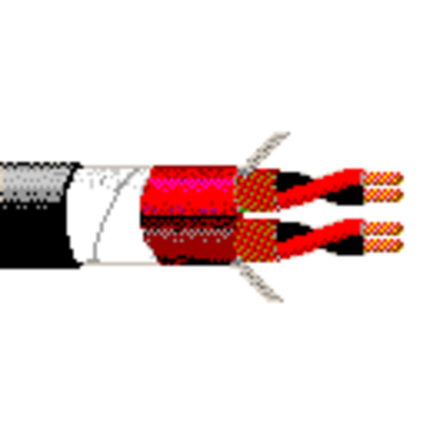

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Manufacturer Status: Discontinued
Product Overview
- Suitable Applications: Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio
Product Life Cycle
- Life Cycle: Discontinued - the product is no longer manufactured
- Discontinuation Announcement Date: 2019-09-10
Construction Details
- Size: 24; Stranding: 41x40; Material: BC - Bare Copper; No. of Pairs: 12
- Material: PP - Polypropylene; Nom. Insulation Diameter: 0.04 in (1.0 mm); Color Code: Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, White, Black, Tan, Pink
- Shield Type: French Braid; Material: Bare Copper (BC); Coverage: 95%
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.119 in (3.02 mm)
- Material: No Shield
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.602 in
Electrical Characteristics
- Nom. Characteristic Impedance: 60 Ohm
- Nom. Velocity of Prop.: 66%
- UL Voltage Rating: 300 V RMS
Mechanical Characteristics
- Operating: -20°C To +60°C
- Max. Pull Tension: 350 lbs (160 kg)
- Bulk Cable Weight: 187 lbs/1000ft (278 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
- European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.360 Revision Date: 07-30-2026
- Footnote: C - CRATE REEL PUT-UP.
