Description
Belden 19109 010250 Portable Cordage, 3 C #18 Str BC, EPDM Ins, Rubber Jkt, UL Type S
Portable Cordage, 3 Conductor 18AWG (42x34) Bare Copper, EPDM Insulation, Rubber Outer Jacket, UL Type S
Ordering Details
- Manufacturer Part Number: 19109 010250
- Color: Black
- Length: 250 ft
- Put-Up: Reel
- UPC/EAN: 612825126515
- Manufacturer Footnote: C F
Supplied as one 250 ft Reel.

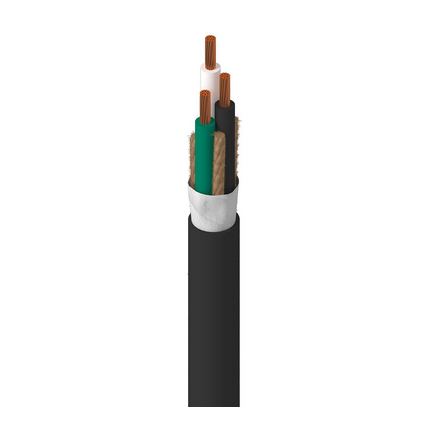

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Construction Details
- Element: Conductor(s); No. of Elements: 3; Size: 18 AWG; Stranding: 42x34; Material: BC - Bare Copper
- Element: Conductor(s); Material: EPDM - Ethylene Propylene Diene Monomer; Nom. Thickness: 0.032 in (0.81 mm); Nom. Insulation Diameter: 0.110 in mm; Color Code: Black, White, Green
- Material: No Shield
- Separator: Cotton Serve; Material: SBR - Styrene Butadiene Rubber; Nom. Thickness: 0.065 in (1.7 mm); Nom. Diameter: 0.38 in
- Overall Cable Diameter (Nominal): 0.38 in
Electrical Characteristics
- Nom. Conductor DCR: 6.65 Ohm/1000ft; Max. Current: 10 Amps per Conductor at 25ºC (7 Amps over 50 ft)
- UL Voltage Rating: 600 V
Mechanical Characteristics
- UL Temperature: 60°C; Operating: -20°C To +60°C
- Stationary Min.: 3.28 in (83.3 mm); Installation Min.: 3.28 in
- Max. Pull Tension: 61.5 lbs (27.9 kg)
- Bulk Cable Weight: 75 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor, Outdoor
- Flammability / Reaction to Fire: FT2
- NEC / UL Compliance: Article 400, S
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
Product Notes
- Notes: Cabling Cotton Serve Separator
History
- Update and Revision: Revision Number: 0.398 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP., F - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'.
