Description
Belden 1860A D261000 Speaker Cable, 2 Conductor 12 AWG BC, Unshielded, CMP
Speaker Cable, 2 Conductor 12 AWG stranded (19x25) high conductivity bare copper conductors with Flamarrest® insulation, cabled in an open twisted construction, Plenum-CL2P.
Ordering Details
- Manufacturer Part Number: 1860A D261000
- Color: Black & Natural Pair
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825125143
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.

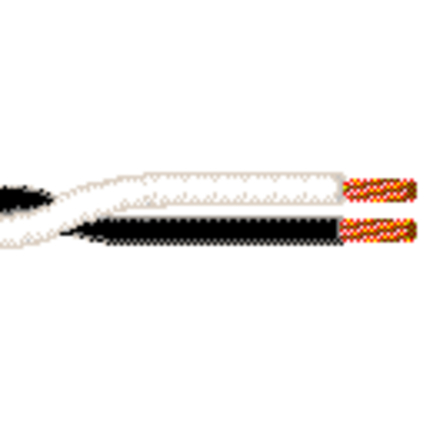

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Speaker Cable
Construction Details
- Size: 12; Stranding: 19x25; Material: BC - Bare Copper (High Conductivity)
- Material: PVC - Polyvinyl Chloride; Nom. Insulation Diameter: 0.135 in (3.43 mm)
- Material: No Shield
- Nom. Diameter: 0.27 in
Electrical Characteristics
- UL Voltage Rating: 150 V RMS
Mechanical Characteristics
- Operating: -20°C To +75°C
- Max. Pull Tension: 152 lbs (68.9 kg)
- Bulk Cable Weight: 54 lbs/1000ft (80 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor - Plenum, Indoor
- Flammability / Reaction to Fire: NFPA 262
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: CL2P
- European Directive Compliance: EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.392 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
