Belden 1817WB 0102500 Audio Snake Cable, 8 Pr #22 Str TC, Ind. Shielded & Jacketed, O/A Foil, PE Jkt, Waterblocked
Audio Snake Cable, 8 Pair 22 AWG (7 x 30) Tinned Copper, PP Insulation, Individually Foil Shielded and PVC Jacketed, Overall Beldfoil® Shield, Waterblocking Tape, PE Outer Jacket
Ordering Details
- Manufacturer Part Number: 1817WB 0102500
- Color: Black
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825431220
Supplied as one 500 ft Reel.

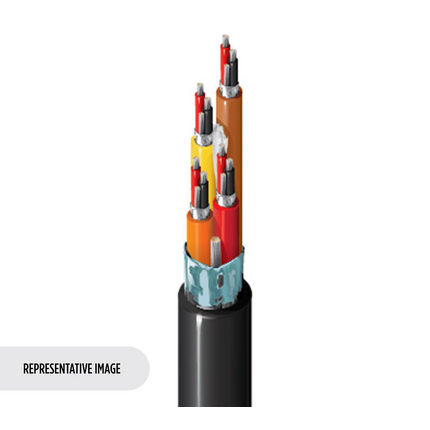

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio; Below-grade, wet-locations
Construction Details
- Element: Pair(s); No. of Elements: 8; Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
- Element: Pair(s); Material: PP - Polypropylene; Nom. Thickness: 0.010 in (0.25 mm); Nom. Insulation Diameter: 0.05 in (1.3 mm); Color Code: Black, Red
- Element: Pair(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 22 AWG (7x30) TC; Notes: Individual pair tapes are adhered to their inner jackets for easy stripping
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 18 AWG (19x30) TC
- Waterblocking: Waterblock Tape
- Element: Pair(s); Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.133 in (3.38 mm)
- Material: PE - Polyethylene; Nom. Thickness: 0.030 in (0.76 mm); Nom. Diameter: 0.537 in (13.6 mm); Ripcord: No
- Outer Jacket1 Table Notes: HDPE
- Overall Cable Diameter (Nominal): 0.537 in (13.6 mm)
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 14.8 Ohm/1000ft (48.6 Ohm/km); Nom. Capacitance Cond-to-Cond: 31 pF/ft (100 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 56 pF/ft (180 pF/m); Nom. Characteristic Impedence: 50 Ohm; Nom. Inductance: 0.18 µH/ft (0.59 µH/m); Nom. Velocity of Prop.: 66%; Max. Current: 1.45 Amps per conductor @ 25°C
- Nom Outer Shield DCR: 11.8 Ohm/1000ft (38.7 Ohm/km)
- UL Voltage Rating: 300 V RMS; Voltage Rating: 300 V
Mechanical Characteristics
- Operating: -20°C to +60°C
- Stationary Min.: 5.4 in (140 mm); Installation Min.: 5.4 in (140 mm)
- Max. Pull Tension: 243 lbs (110 kg)
- Bulk Cable Weight: 136 lbs/1000ft (202 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Aerial, Burial
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.349 Revision Date: 09-07-2025
