Description
Belden 1815P 0105000 Audio Snake Cable, 4 Pr #22 Str TC, Ind. Shielded & Jacketed, PVDF Jkt, CMP
Audio Snake Cable, 4 Pair 22 AWG (7 x 30) Tinned Copper, FEP Insulation, Individually Foil Shielded and PVDF Jacketed, Overall PVDF Jacket, Ripcord, CMP
Ordering Details
- Manufacturer Part Number: 1815P 0105000
- Color: Black
- Length: 5,000 ft
- Put-Up: Reel
- UPC/EAN: 612825438168
Supplied as one 5,000 ft Reel.

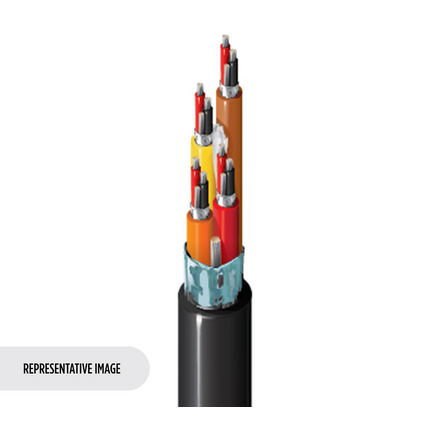

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio
Construction Details
- Element: Pair(s); No. of Elements: 4; Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
- Element: Pair(s); Material: FEP - Fluorinated Ethylene Propylene; Nom. Thickness: 0.010 in (0.25 mm); Nom. Insulation Diameter: 0.05 in (1.3 mm); Color Code: Black, Red
- Element: Pair(s); Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC; Notes: each pair
- Element: Pair(s); Material: PVDF - Polyvinylidene Fluoride; Nom. Thickness: 0.009 in (0.23 mm); Nom. Diameter: 0.119 in (3.02 mm); Color: Gray
- Material: PVDF - Polyvinylidene Fluoride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.317 in (8.05 mm)
- Overall Cable Diameter (Nominal): 0.317 in (8.05 mm)
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 14.8 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 31 pF/ft (100 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 56 pF/ft (180 pF/m); Nom. Characteristic Impedence: 50 Ohm; Nom. Velocity of Prop.: 66%; Max. Current: 1.45 Amps per conductor @ 25°C
- UL Voltage Rating: 300 V (CMP)
Mechanical Characteristics
- UL Temperature: 150°C; Operating: -40°C to +150°C
- Stationary Min.: 3.2 in (81 mm); Installation Min.: 3.2 in (81 mm)
- Max. Pull Tension: 109 lbs (49.4 kg)
- Bulk Cable Weight: 52 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor - Plenum, Indoor
- Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), FT6
- NEC / UL Compliance: Article 800, CMP
- CEC / C(UL) Compliance: CMP
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Non-Plenum Number: 1815R
History
- Update and Revision: Revision Number: 0.495 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
