Belden 1801B 8771000 Digital Audio Cable, 1 Pr #24 Str TC, O/A Foil, Flamarrest® Jkt, CMP - Natural, 1,000 ft Reel

$2,752.99
SKU:
1801B 8771000
Shipping:
Calculated at Checkout
Color:
Natural
Length:
1,000 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
1801B
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

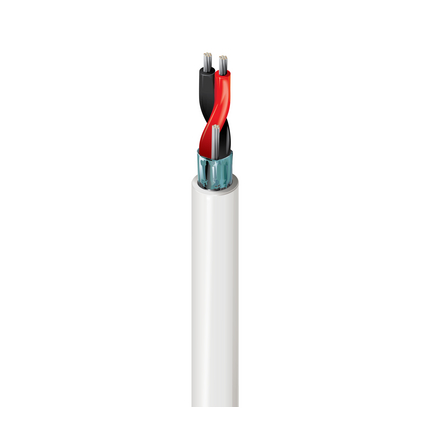

Belden 1801B 8771000 Digital Audio Cable, 1 Pr #24 Str TC, O/A Foil, Flamarrest® Jkt, CMP

Digital Audio Cable, 1 Pair, 24 AWG (7 x 32) Tinned Copper, FEP Insulation, Overall Beldfoil® Shield, Flamarrest® Jacket, CMP

Ordering Details

  • Manufacturer Part Number: 1801B 8771000
  • Color: Natural
  • Length: 1,000 ft
  • Put-Up: Reel
  • UPC/EAN: 612825122951
  • Manufacturer Footnote: C

Supplied as one 1,000 ft Reel.

Product Overview

  • Suitable Applications: Digital audio, Interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles

Construction Details

  • Element: Pair(s); No. of Elements: 1; Size: 24 AWG; Stranding: 7x32; Material: TC - Tinned Copper
  • Element: Pair(s); Material: FEP - Fluorinated Ethylene Propylene (Foam); Nom. Thickness: 0.021 in (0.53 mm); Nom. Insulation Diameter: 0.066 in (1.7 mm); Color Code: Red & Black
  • Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.015 in (0.38 mm); Nom. Diameter: 0.165 in (4.19 mm)
  • Overall Cable Diameter (Nominal): 0.165 in (4.19 mm)

Electrical Characteristics

  • Element: Pair(s); Nom. Conductor DCR: 28.8 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 12 pF/ft (39 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 26 pF/ft (85 pF/m); Nom. Characteristic Impedence: 110 Ohm; Nom. Inductance: 0.18 µH/ft (0.59 µH/m); Nom. Velocity of Prop.: 78%; Max. Current: 3.8 Amps per conductor @ 30°C
  • Nom Outer Shield DCR: 17.42 Ohm/1000ft (57.15 Ohm/km)
  • Nom. Insertion Loss (Attenuation): 0.82 dB/100ft
  • Nom. Insertion Loss (Attenuation): 1.01 dB/100ft
  • Nom. Insertion Loss (Attenuation): 1.02 dB/100ft
  • Nom. Insertion Loss (Attenuation): 1.08 dB/100ft
  • Nom. Insertion Loss (Attenuation): 1.15 dB/100ft
  • Nom. Insertion Loss (Attenuation): 1.16 dB/100ft
  • Nom. Insertion Loss (Attenuation): 1.23 dB/100ft
  • Nom. Insertion Loss (Attenuation): 1.34 dB/100ft
  • Nom. Insertion Loss (Attenuation): 1.38 dB/100ft
  • Nom. Insertion Loss (Attenuation): 1.58 dB/100ft
  • Nom. Insertion Loss (Attenuation): 1.79 dB/100ft
  • Nom. Insertion Loss (Attenuation): 1.85 dB/100ft
  • Nom. Insertion Loss (Attenuation): 2.05 dB/100ft
  • Nom. Insertion Loss (Attenuation): 2.34 dB/100ft
  • Nom. Insertion Loss (Attenuation): 2.43 dB/100ft
  • Nom. Insertion Loss (Attenuation): 3.33 dB/100ft
  • UL Voltage Rating: 300 V (CMP)

Mechanical Characteristics

  • UL Temperature: 75°C; Operating: -20°C to +75°C
  • Stationary Min.: 1.7 in (43 mm); Installation Min.: 1.7 in (43 mm)
  • Max. Pull Tension: 16.5 lbs (7.48 kg)
  • Bulk Cable Weight: 12 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Indoor - Plenum, Indoor
  • Flammability / Reaction to Fire: NFPA 262 (UL 910), FT6, IEC 60332-1-2
  • CPR Compliance: CPR Euroclass: Eca
  • NEC / UL Compliance: Article 800, CMP
  • CEC / C(UL) Compliance: CMP
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • UK Regulation Compliance: UKCA Mark
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
  • Other Standard Compliance(s): AES/EBU
  • Non-Plenum Number: 1800B

History

  • Update and Revision: Revision Number: 0.512 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP.
