Description
Belden 1696A B591000 Digital Audio Cable, 1 Pr #22, Str TC, Foil + Braid, PVC Jkt

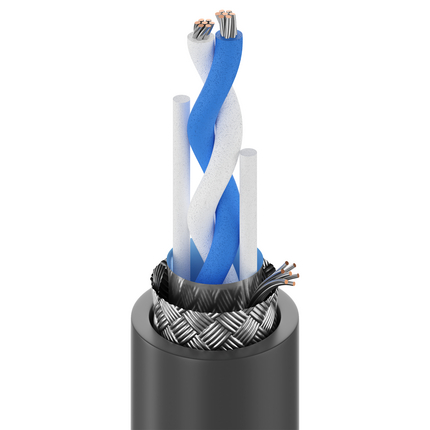

Digital Audio Cable, 1 Pair 22 AWG (7 x 30) Tinned Copper, Datalene® Insulation, Overall Beldfoil® Shield, 90% Tinned Copper Braid Shield, PVC jacket
Ordering Details
- Manufacturer Part Number: 1696A B591000
- Color: Black, Matte
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825121312
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.
Product Overview
- Suitable Applications: Digital audio, Interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles
Construction Details
- Element: Pair(s); No. of Elements: 1; Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
- Element: Pair(s); Material: PE - Polyethylene (Foam); Nom. Thickness: 0.027 in (0.69 mm); Nom. Insulation Diameter: 0.082 in (2.1 mm); Color Code: Blue & White; Notes: HDPE
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 90%
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.025 in (0.64 mm); Nom. Diameter: 0.235 in (5.97 mm)
- Overall Cable Diameter (Nominal): 0.235 in (5.97 mm)
Electrical Characteristics
- Element: Pair(s); Nom. Conductor DCR: 18.2 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 13 pF/ft (43 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 26 pF/ft (85 pF/m); Nom. Characteristic Impedence: 110 Ohm; Nom. Delay: 1.3 ns/ft; Nom. Inductance: 0.18 µH/ft (0.59 µH/m); Nom. Velocity of Prop.: 76%; Max. Current: 6 Amps per conductor @ 30°C
- Nom Outer Shield DCR: 5.89 Ohm/1000ft (19.3 Ohm/km)
- Frequency [MHz]: 0.384; Nom. Insertion Loss (Attenuation): 0.58 dB/100ft
- Frequency [MHz]: 0.7056; Nom. Insertion Loss (Attenuation): 0.69 dB/100ft
- Frequency [MHz]: 0.768; Nom. Insertion Loss (Attenuation): 0.7 dB/100ft
- Frequency [MHz]: 1.024; Nom. Insertion Loss (Attenuation): 0.76 dB/100ft
- Frequency [MHz]: 1.4112; Nom. Insertion Loss (Attenuation): 0.82 dB/100ft
- Frequency [MHz]: 1.536; Nom. Insertion Loss (Attenuation): 0.84 dB/100ft
- Frequency [MHz]: 2.048; Nom. Insertion Loss (Attenuation): 0.88 dB/100ft
- Frequency [MHz]: 2.8224; Nom. Insertion Loss (Attenuation): 0.93 dB/100ft
- Frequency [MHz]: 3.072; Nom. Insertion Loss (Attenuation): 0.95 dB/100ft
- Frequency [MHz]: 4.096; Nom. Insertion Loss (Attenuation): 1.09 dB/100ft
- Frequency [MHz]: 5.6448; Nom. Insertion Loss (Attenuation): 1.32 dB/100ft
- Frequency [MHz]: 6.144; Nom. Insertion Loss (Attenuation): 1.37 dB/100ft
- Frequency [MHz]: 8.192; Nom. Insertion Loss (Attenuation): 1.48 dB/100ft
- Frequency [MHz]: 11.2896; Nom. Insertion Loss (Attenuation): 1.74 dB/100ft
- Frequency [MHz]: 12.288; Nom. Insertion Loss (Attenuation): 1.77 dB/100ft
- Frequency [MHz]: 24.576; Nom. Insertion Loss (Attenuation): 2.41 dB/100ft
- UL Voltage Rating: 300 V
Mechanical Characteristics
- UL Temperature: 60°C; Operating: -30°C to +60°C
- Stationary Min.: 2.4 in (61 mm); Installation Min.: 2.4 in (61 mm)
- Max. Pull Tension: 23.7 lbs (10.8 kg)
- Bulk Cable Weight: 31 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
- Flammability / Reaction to Fire: IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Other Standard Compliance(s): AES/EBU
Product Notes
- Notes: Cabling has two rod fillers for improved electrical performance.
History
- Update and Revision: Revision Number: 0.479 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
