Belden 1694F B591000 75 Ohm SDI Coax, RG-6, 19 AWG Str BC, Double 95% TC Braid, PVC Jkt, CM, Flexible
75 Ohm SDI Coax, RG-6, 19 AWG (7x27) Bare Copper Conductor, PE Insulation, Double 95% Tinned Copper Braid Shield, PVC Jacket, CM, Flexible
Ordering Details
- Manufacturer Part Number: 1694F B591000
- Color: Black, Matte
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825356196
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.

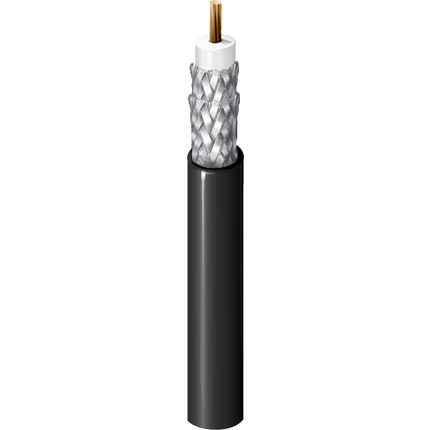

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Digital Video, 6 Gb/s UHDTV, HD-SDI 1080p
Construction Details
- RG Type: 6
- Element: Coax(es); Size: 19 AWG; Stranding: 7x27; Nom. Diameter: 0.041 in; Material: BC - Bare Copper
- Element: Coax(es); Material: PE - Polyethylene (Foam); Nom. Insulation Diameter: 0.180 in (4.57 mm); Color Code: White
- Layer: 1; Outer Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 95%
- Layer: 2; Outer Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 95%
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.276 in (7.01 mm)
- Overall Cable Diameter (Nominal): 0.276 in (7.01 mm)
Electrical Characteristics
- Frequency: 5 - 850 MHz; Min. Return Loss: 20 dB
- Frequency: 850 - 6000 MHz; Min. Return Loss: 15 dB
- Frequency: 1 MHz; Nom. Attenuation: 0.24 dB/100ft
- Frequency: 3.58 MHz; Nom. Attenuation: 0.45 dB/100ft
- Frequency: 5 MHz; Nom. Attenuation: 0.54 dB/100ft
- Frequency: 6 MHz; Nom. Attenuation: 0.55 dB/100ft
- Frequency: 7 MHz; Nom. Attenuation: 0.62 dB/100ft
- Frequency: 10 MHz; Nom. Attenuation: 0.72 dB/100ft
- Frequency: 12 MHz; Nom. Attenuation: 0.83 dB/100ft
- Frequency: 25 MHz; Nom. Attenuation: 1.18 dB/100ft
- Frequency: 55 MHz; Nom. Attenuation: 1.76 dB/100ft
- Frequency: 67.5 MHz; Nom. Attenuation: 1.9 dB/100ft
- Frequency: 71.5 MHz; Nom. Attenuation: 2.0 dB/100ft
- Frequency: 88.5 MHz; Nom. Attenuation: 2.2 dB/100ft
- Frequency: 100 MHz; Nom. Attenuation: 2.4 dB/100ft
- Frequency: 135 MHz; Nom. Attenuation: 2.8 dB/100ft
- Frequency: 143 MHz; Nom. Attenuation: 2.9 dB/100ft
- Frequency: 180 MHz; Nom. Attenuation: 3.3 dB/100ft
- Frequency: 270 MHz; Nom. Attenuation: 4.0 dB/100ft
- Frequency: 360 MHz; Nom. Attenuation: 4.7 dB/100ft
- Frequency: 540 MHz; Nom. Attenuation: 5.9 dB/100ft
- Frequency: 720 MHz; Nom. Attenuation: 6.9 dB/100ft
- Frequency: 750 MHz; Nom. Attenuation: 7.1 dB/100ft
- Frequency: 1000 MHz; Nom. Attenuation: 6.3 dB/100ft
- Frequency: 1500 MHz; Nom. Attenuation: 7.8 dB/100ft
- Frequency: 2000 MHz; Nom. Attenuation: 12.5 dB/100ft
- Frequency: 2250 MHz; Nom. Attenuation: 13.4 dB/100ft
- Frequency: 3000 MHz; Nom. Attenuation: 15.9 dB/100ft
- Frequency: 4500 MHz; Nom. Attenuation: 20.6 dB/100ft
- Frequency: 6000 MHz; Nom. Attenuation: 28.7 dB/100ft
- Nom. Conductor DCR: 8.5 Ohm/1000ft; Nom. Outer Shield DCR: 1.7 Ohm/1000ft (5.6 Ohm/km); Nom. Capacitance Cond-to-Shield: 17.0 pF/ft (55.8 pF/m); Nom. Characteristic Impedance: 75 Ohm; Nom. Velocity of Prop.: 80%
- UL Voltage Rating: 300 V (CM)
Mechanical Characteristics
- UL Temperature: 60°C; Operating: -35°C to +75°C
- Installation Min.: 2.75 in (69.9 mm)
- Max. Pull Tension: 90 lbs (41 kg)
- Bulk Cable Weight: 50 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: UL 1685 - UL Loading
- NEC / UL Compliance: CM
- CEC / C(UL) Compliance: CM
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.530 Revision Date: 05-27-2026
- Footnote: C - CRATE REEL PUT-UP.
